POS Machine & Terminal Silicone Keypad Manufacturer
Silicone keypads for POS machines, payment terminals, PIN pads and handheld terminals. Custom key geometry, tactile force, conductive contacts, backlighting, legends and sealing features for reliable daily operation.
What Are POS Machine & Terminal Silicone Keypads?
POS machine and terminal silicone keypads are flexible rubber key interfaces that provide tactile input and electrical contact for point-of-sale systems, payment terminals, PIN pads and other transaction equipment. A custom POS silicone keypad is developed around your terminal housing, PCB contact layout, key positions, required actuation force, legend system, backlighting and environmental requirements.
These keypads combine the tactile structure of molded silicone with conductive contact elements that close the circuit when each key is pressed. The silicone body can also support molded keycaps, printed legends, laser-etched graphics, translucent windows and sealing features around the keys.
SKF manufactures custom silicone keypads for POS machines and terminals in China, supporting OEM and ODM projects from engineering review and tooling through sampling, production, inspection and packaging. Our engineering team reviews the keypad together with the PCB, housing and user interface rather than treating the rubber sheet as an isolated component.
POS Machine & Terminal Silicone Keypad Manufacturing at a Glance
MOQ
Production quantities start from 500 pieces for suitable existing tooling or repeat configurations. New custom tooling projects are normally planned from 3,000 pieces, depending on keypad structure, tooling investment and customization requirements.
Lead Times
Initial samples can be developed in 5–10 working days after design information is confirmed. Custom tooling generally requires 10–20 working days, followed by mass production in 15–25 working days after sample approval.
Tactile & Electrical Performance
Key force, travel, snap ratio, return force and conductive pill position are tuned to the terminal interface. Common silicone keypad hardness ranges from 40–70 Shore A, with the final compound selected according to structure and operating requirements.
Graphics & Backlighting
Key legends can use screen printing, pad printing or laser etching. Translucent silicone, clear windows and controlled light paths can be incorporated when illuminated keys or night-use visibility are required.
Who We Manufacture POS Machine & Terminal Silicone Keypads For
POS equipment places different demands on keypads depending on how the terminal is installed, cleaned and operated. The keypad structure is therefore matched to the terminal type and user interaction.

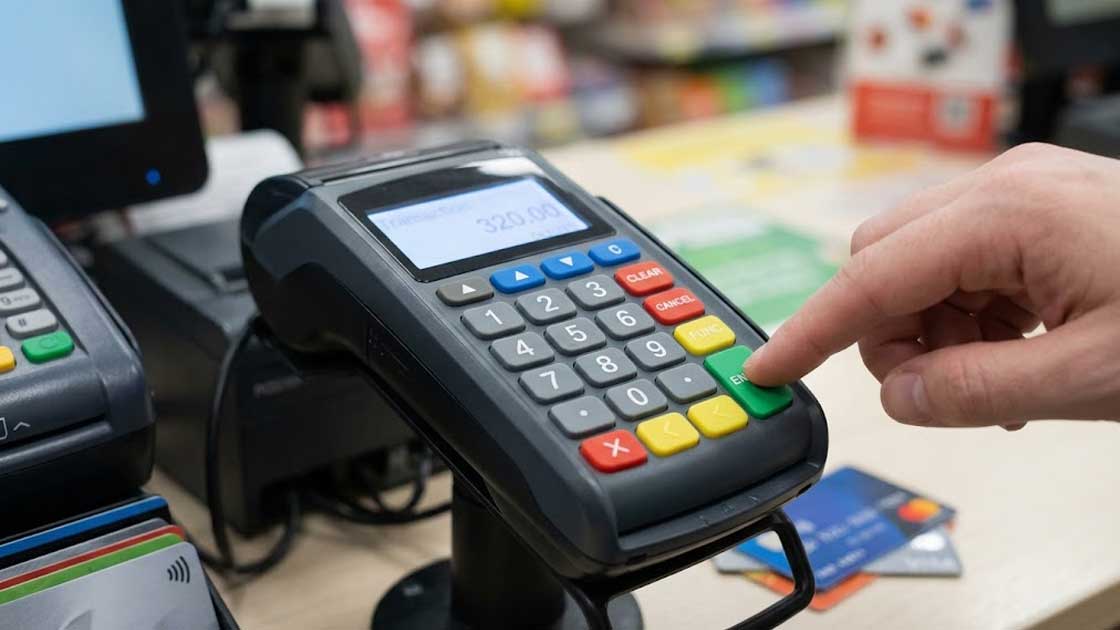

Countertop POS Terminal Brands
Countertop POS systems often use dedicated numeric or function key layouts for cashiers and staff. We develop keypads around the housing, PCB and display interface, with tactile force selected for frequent repetitive operation. Large legends, stable keycaps and defined tactile feedback help operators distinguish functions quickly during transactions.

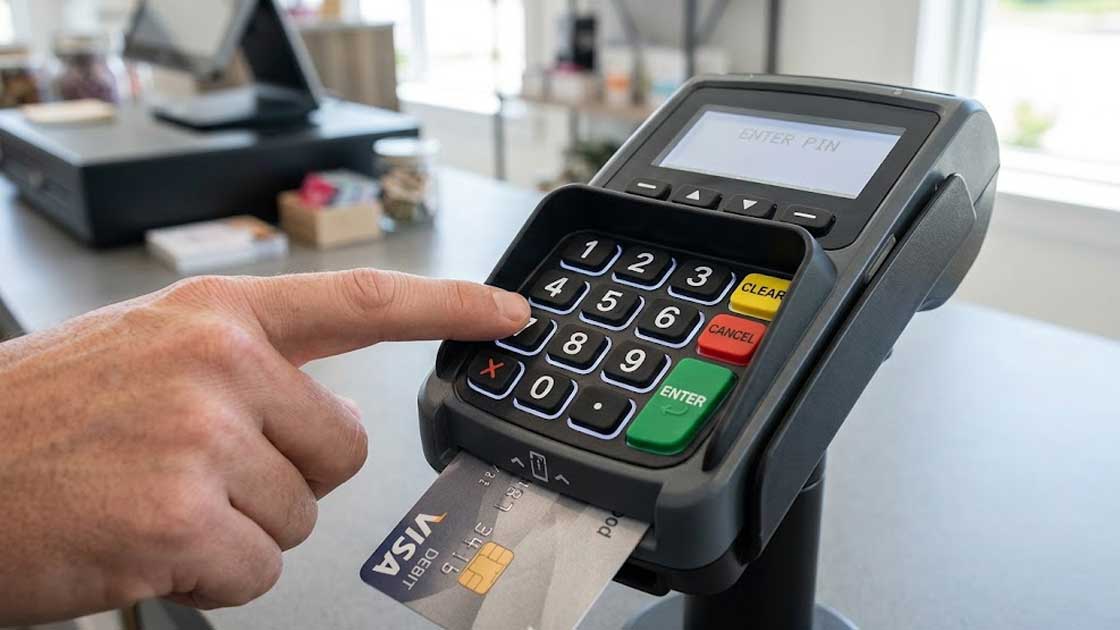

PIN Pad & Card Reader Manufacturers
PIN pads place greater emphasis on clear numeric identification, tactile feedback and controlled key spacing. The keypad can use molded or printed numerals, high-contrast legends and optional backlighting. The surrounding silicone structure can also be designed to reduce the chance of debris entering around the key interface.

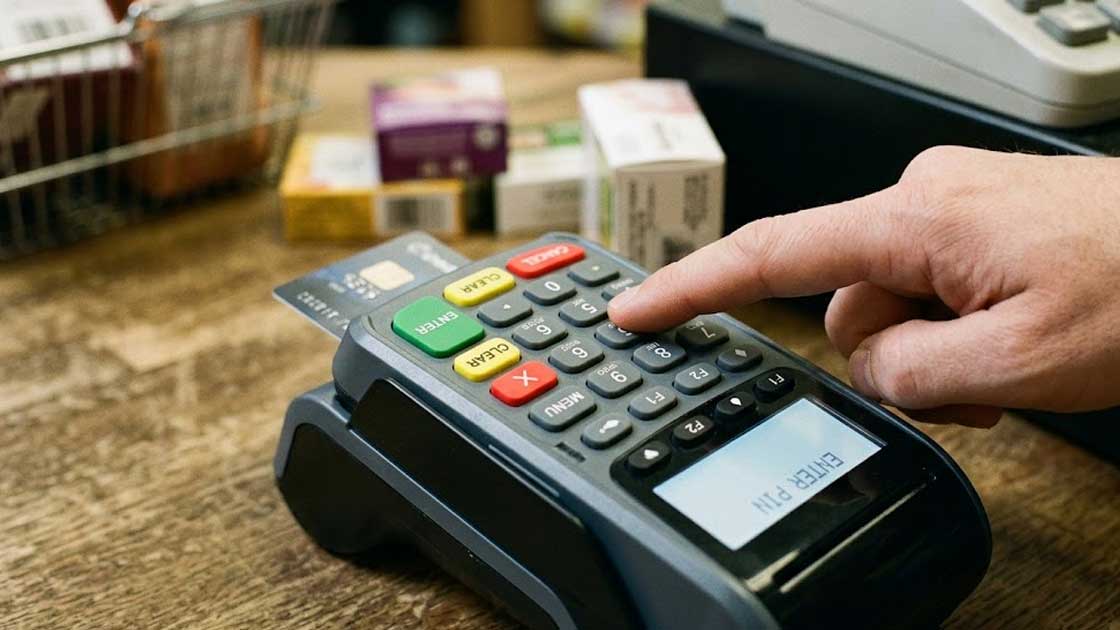

Payment Terminal Manufacturers
Payment terminals need compact interfaces with consistent key response across the entire keypad. Silicone keypads can integrate numeric keys, navigation keys, confirmation keys and function buttons into one molded structure. Conductive pill positioning is matched to the PCB contact points to maintain reliable electrical switching throughout the keypad.

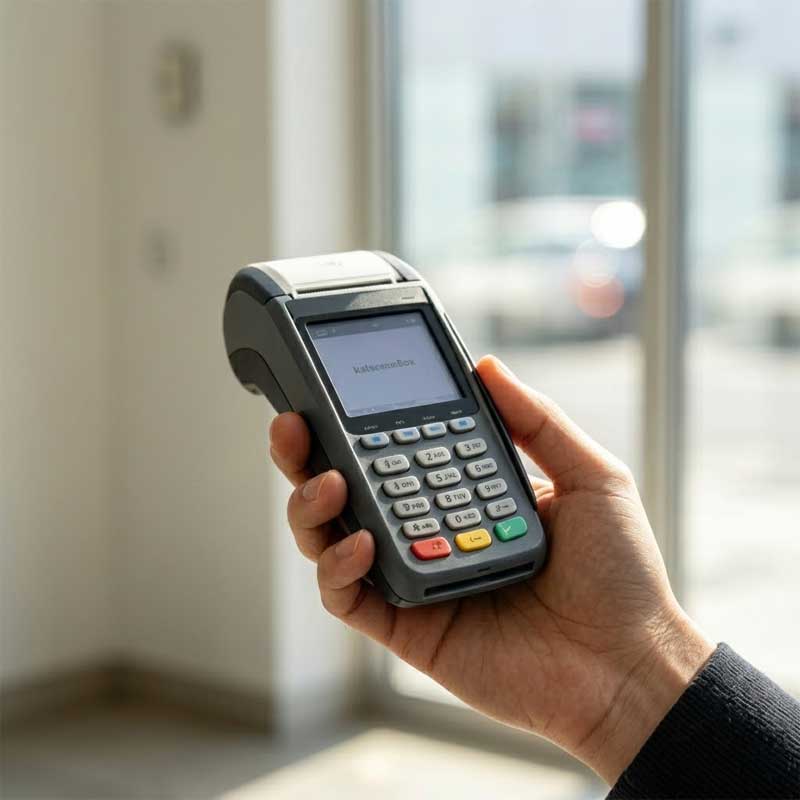

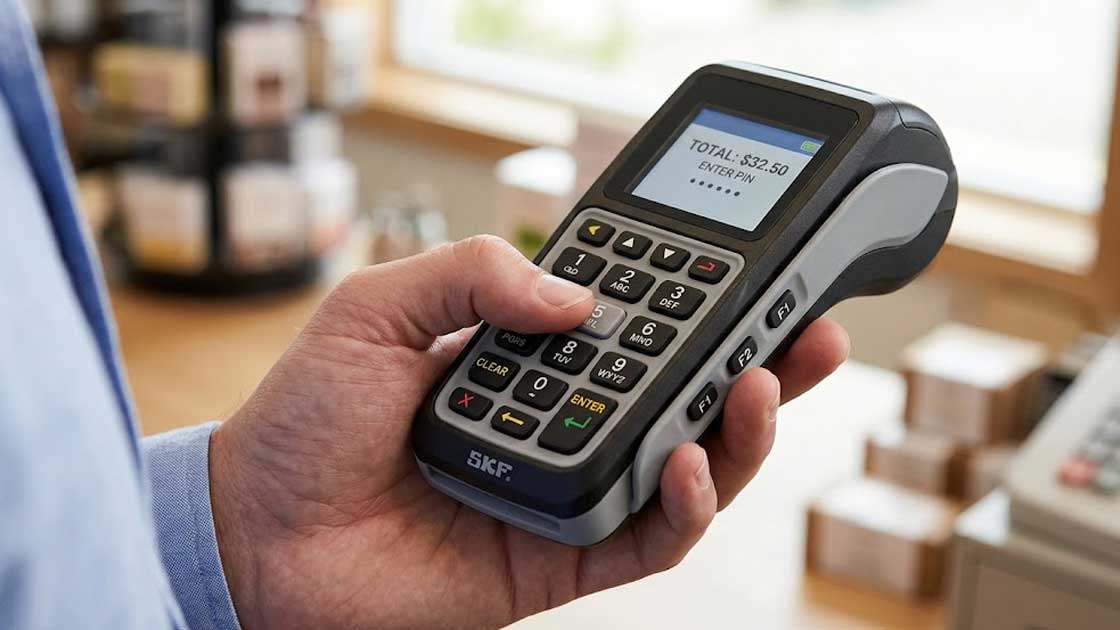

Handheld POS Terminal Brands
Portable POS terminals need compact keypads that fit limited enclosure space without sacrificing tactile response. SKF can adjust key height, key pitch, web geometry and overall keypad thickness to fit handheld housings. The design can also accommodate side-mounted or auxiliary buttons where the PCB layout requires additional controls.

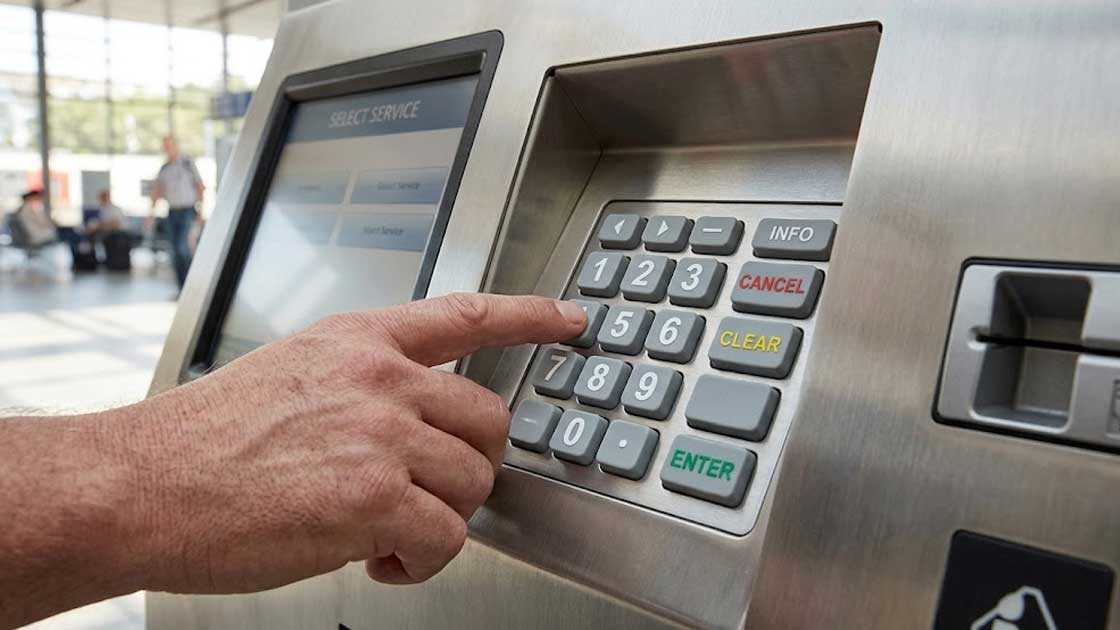

Self-Service & Kiosk Equipment Manufacturers
Self-service terminals may operate in public environments where users have different pressing habits.Keypads for these systems can use durable legends, reinforced key structures and surface treatments selected for repeated cleaning and frequent public use. The housing interface is reviewed to reduce exposed gaps around the keypad.

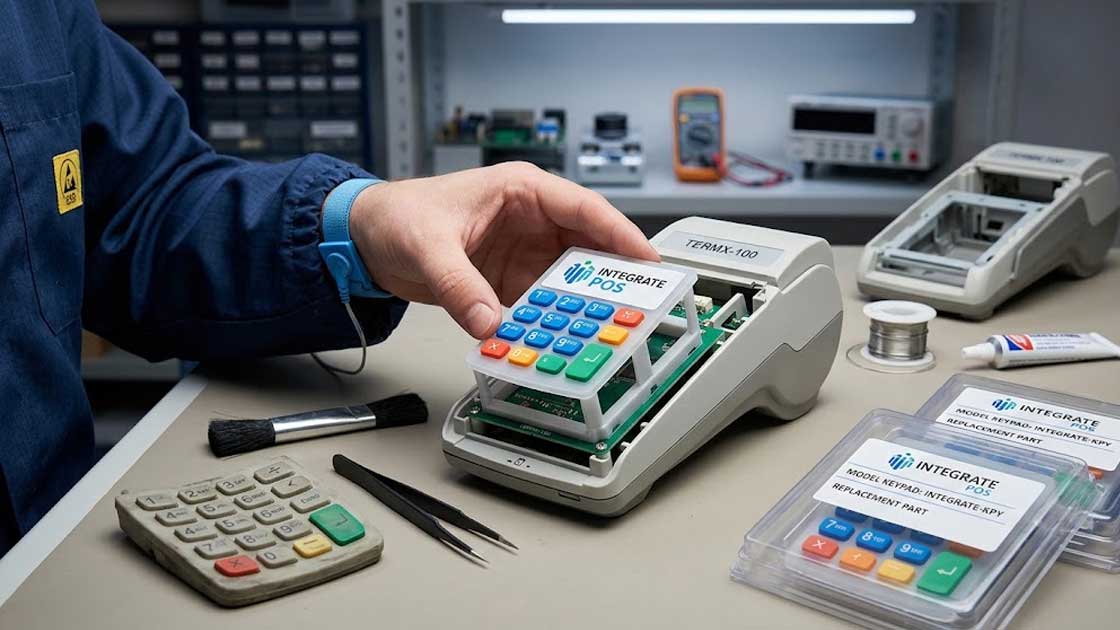

POS Equipment Distributors & OEM Integrators
Distributors and system integrators may need replacement or private-label keypad components for existing terminal platforms. Existing keypad structures can be reviewed first to determine whether tooling modification or complete new tooling is required. Branding, color, legends and packaging can then be matched to the required terminal model.
POS Machine & Terminal Silicone Keypad Types We Can Develop
POS Machine & Terminal Silicone Keypad Customization
POS keypad customization starts with the terminal interface, then moves into tactile response, graphics, materials and production details.

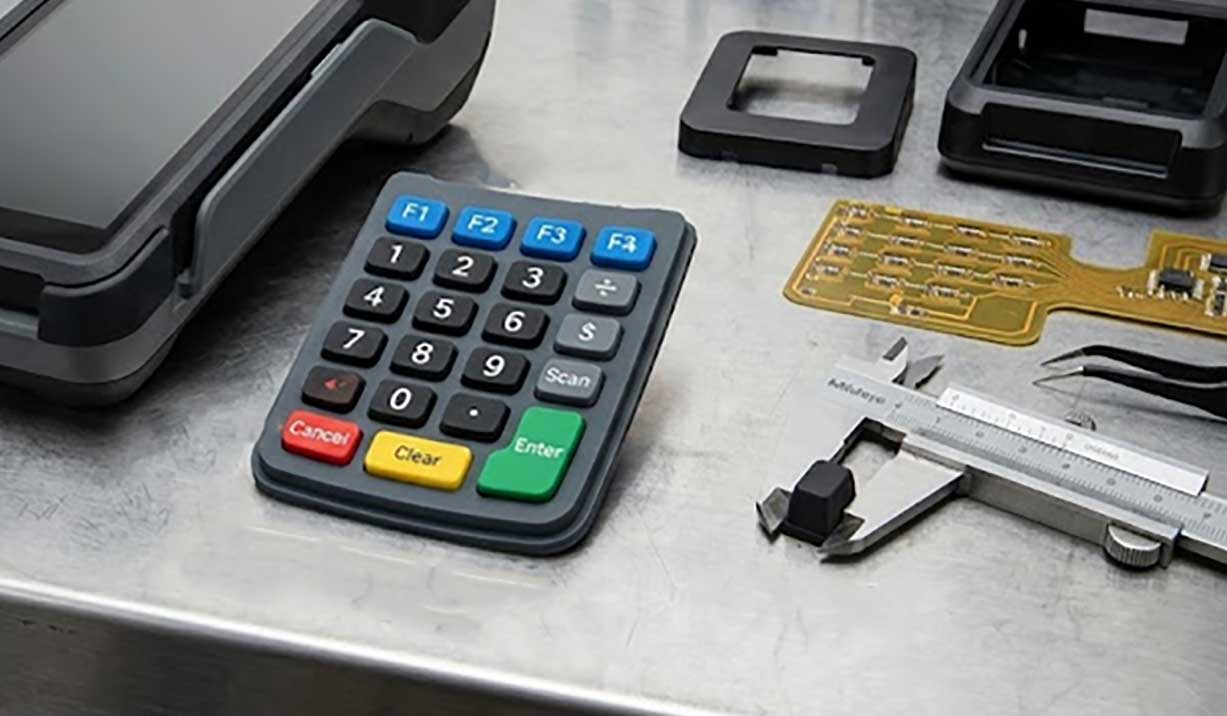

The keypad dimensions must fit the terminal housing and PCB without creating interference during assembly. Key pitch, key height and overall sheet thickness affect both user comfort and the available space inside the terminal.
Available options include:
- Custom overall keypad dimensions
- Numeric and function key layouts
- Key pitch adjustment
- Keycap height
- Keycap shape
- Web thickness
- Key spacing
- Mounting features
- Housing-compatible perimeter geometry
- PCB-aligned conductive pill positions
Tactile response determines how clearly users recognize each key activation. POS terminals often receive repeated presses during every transaction, so force and travel need to remain comfortable while still providing clear confirmation.
SKF adjusts the silicone web structure to control actuation force, snap ratio and return behavior. The design review considers the peak force required to collapse the web, the force at conductive contact and the mechanical travel between those points.
Available options include:
- Actuation force
- Key travel
- Snap ratio
- Return force
- Webbing angle
- Diaphragm thickness profile
- Buckling radius
- Conductive pill position
- Keycap height
- Different tactile responses for selected keys
POS key legends must remain readable after repeated pressing and cleaning. The graphic method depends on the legend size, surface geometry, color combination and durability requirement.
Available options include:
- Screen-printed legends
- Pad-printed graphics
- Laser-etched legends
- Molded keycap symbols
- Multiple graphic colors
- High-contrast legends
- Translucent graphics
- Backlight windows
- Custom symbols
- Brand colors
Material selection affects tactile response, durability, temperature performance and compatibility with the surrounding terminal construction.
Available options include:
- Different silicone hardness grades
- Opaque silicone
- Translucent silicone
- Colored silicone
- Conductive carbon pills
- Alternative conductive contacts
- Surface coatings where required
- Low-compression-set formulations
- Material documentation for the target market
Start Your Custom POS Silicone Keypad Project
Send your terminal drawing, keypad dimensions, PCB contact layout, target quantity and reference sample if available. SKF can review the key structure, conductive contact design, tactile response, graphics and assembly interface before tooling.

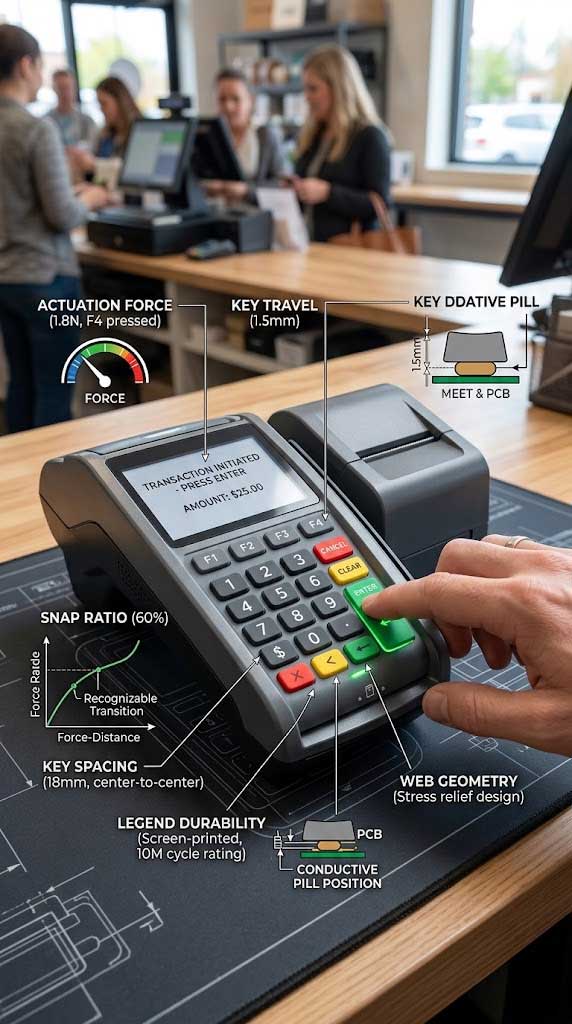

How to Specify a Better POS Machine & Terminal Silicone Keypad
A reliable POS keypad starts with the complete human-machine interface, not only the silicone material. These specifications have the greatest effect on performance:
- Actuation force — selected for the expected pressing frequency and user group.
- Key travel — enough movement to provide clear tactile feedback without excessive vertical movement.
- Snap ratio — balanced to create a recognizable transition from loading to activation.
- Conductive pill position — aligned accurately with the PCB contact center.
- Key spacing — sufficient to support accurate operation without making the terminal unnecessarily large.
- Legend durability — matched to repeated pressing and cleaning requirements.
- Web geometry — designed to avoid excessive stress concentration around frequently used keys.
- Housing interface — checked to prevent interference during assembly.
A high actuation force does not automatically create better tactile feedback. The peak force, collapse behavior, contact point and return force need to work together.
One practical manufacturing issue appears when the conductive pill is positioned correctly on the drawing but the web structure shifts the key during compression. The pill can then approach the PCB contact at an angle or off-center. SKF checks the mechanical structure and contact position together during design review.
Full specification guide
How to Specify a Better POS Silicone Keypad — covering actuation force, travel, snap ratio, conductive pill design, key spacing, graphics and housing integration.

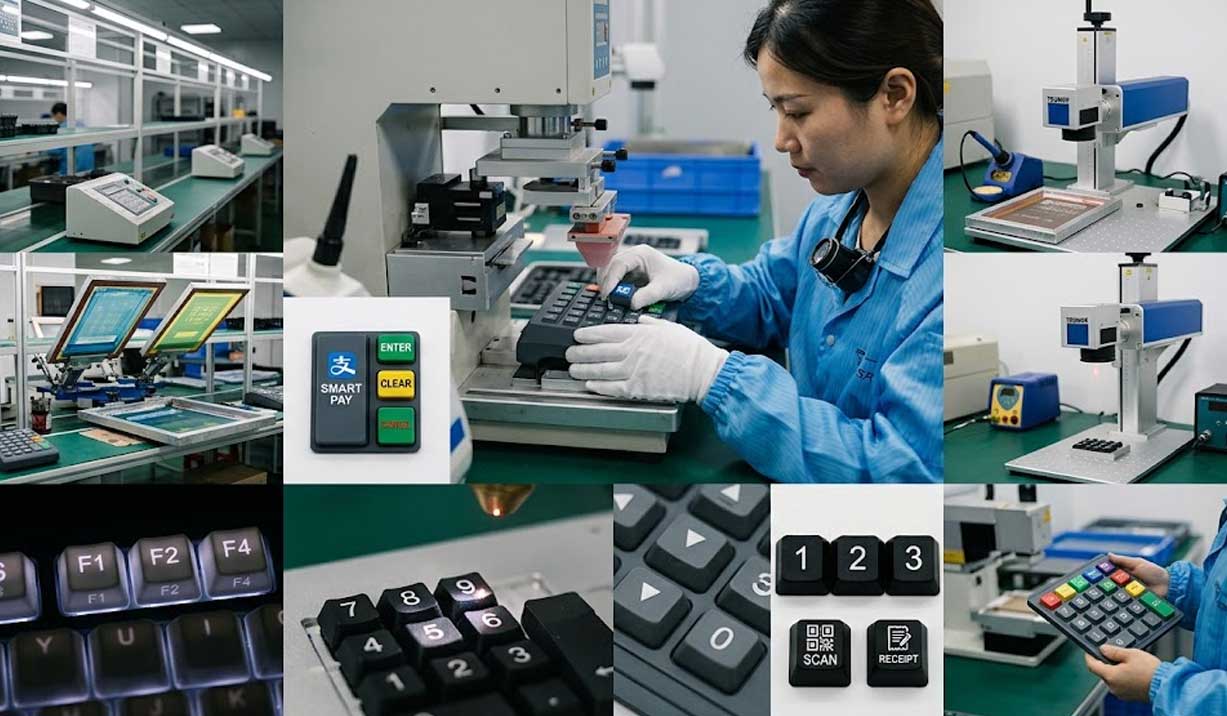

POS Machine & Terminal Silicone Keypad Logo and Branding Methods
POS keypads need more than attractive graphics. The legend method must survive repeated finger contact, cleaning and normal terminal use while remaining aligned with the key geometry.
Screen Printing
Suitable for clear, high-contrast legends and multi-color graphics on compatible silicone surfaces.

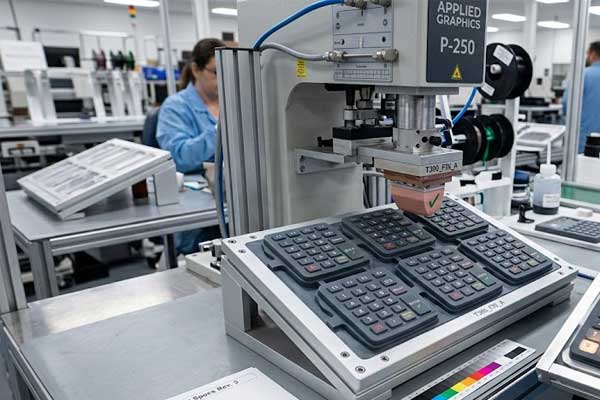

Pad Printing
Useful for small symbols, characters and graphics on curved or recessed key surfaces where conventional screen printing is difficult.
Laser Etching
Removes selected surface layers to create durable legends and symbols. Laser parameters are adjusted according to the silicone compound, surface treatment and required contrast.
Translucent Backlit Graphics
Translucent silicone and controlled graphic windows allow selected numerals or symbols to transmit light while surrounding areas remain visually controlled.
POS Machine & Terminal Silicone Keypad Material and Performance Options
POS equipment operates in environments where users repeatedly press, clean and handle the terminal. Material and structure therefore need to support tactile consistency, surface durability and reliable electrical contact.
The keypad should maintain recognizable key response through repeated operation.
Silicone hardness and web geometry influence actuation force, snap ratio and return force. SKF reviews the diaphragm structure rather than selecting hardness alone.
For frequently used numeric keys, the design should balance low enough force for repeated entry with enough snap response to make activation clear.
The conductive pill must match the PCB contact geometry.
Carbon pills are commonly used to provide the conductive path between the keypad and PCB. Diameter, thickness, resistance and position affect switching reliability.
The PCB contact pattern also matters. A pill that is too small can reduce contact margin, while excessive pill size may interfere with neighboring contacts or mechanical travel.
Surface and graphic choices should reflect repeated terminal cleaning.
POS terminals are frequently wiped between users or during routine equipment maintenance. Silicone compound, printing system and surface treatment must therefore be considered together.
Cleaning compatibility should be confirmed against the actual agents and concentration used by the customer rather than relying only on generic chemical-resistance claims.
Key surfaces need to withstand repetitive finger contact without losing important legends.
The most frequently used keys can accumulate substantially more wear than secondary function keys. Legend placement, printing method, laser parameters and surface finish should be selected accordingly.
Silicone provides a wide material operating window for terminal environments.
Silicone compounds can maintain flexibility across a broad temperature range, but the actual terminal operating specification depends on the selected compound, keypad structure, housing and electronics.
For indoor POS equipment, the keypad normally experiences less extreme temperatures than automotive or industrial equipment. This allows the design to prioritize tactile response, appearance and cleaning resistance without unnecessarily selecting extreme-temperature compounds.
Light transmission must be controlled through both material and structure.
Translucent silicone can transmit light through selected key areas. SKF can review silicone thickness, graphic windows and keycap structure to help reduce uneven illumination and unwanted light leakage.
Backlit keypad performance also depends on the LED arrangement, light guide or PCB design inside the terminal.
The keypad can contribute to the terminal’s environmental protection when designed as part of the enclosure.
Perimeter sealing ribs, compression features and controlled contact surfaces can reduce pathways around the keypad.
However, the final IP rating belongs to the complete terminal assembly. Silicone keypad design, housing tolerances, gasket compression and PCB protection must all be validated together.

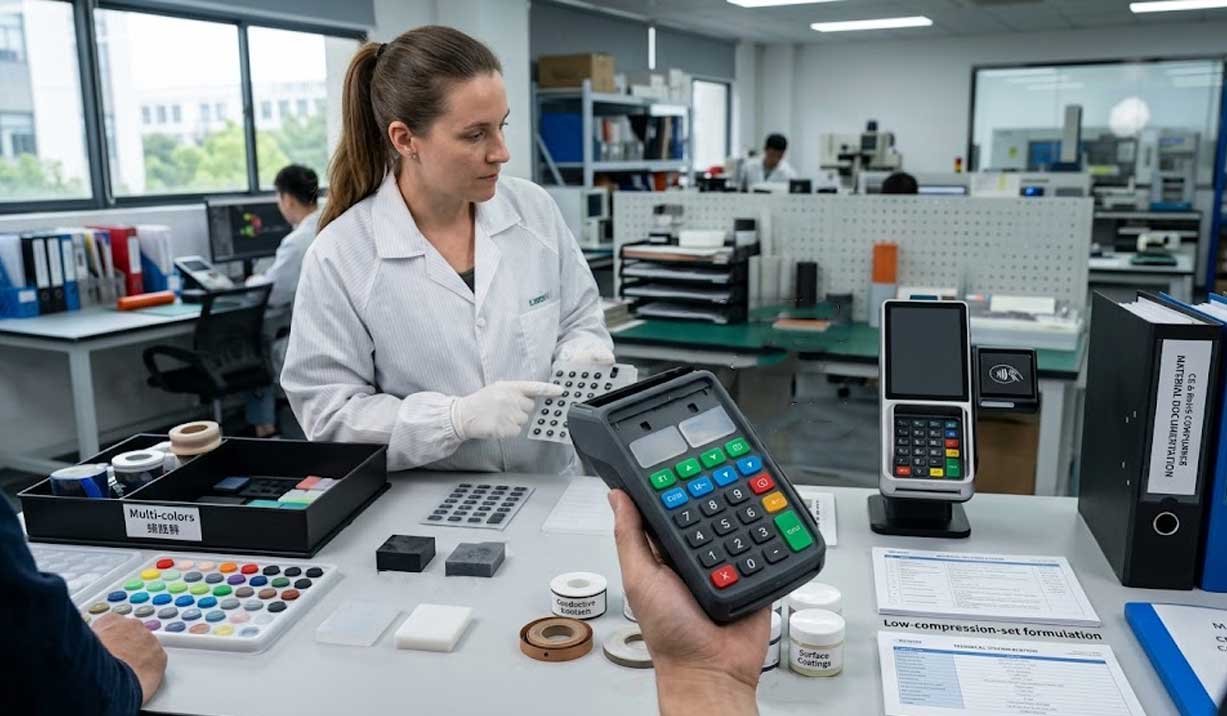

Available documentation may include:
- Silicone material data sheets
- Material declarations
- Applicable FDA-related documentation
- LFGB-related documentation where relevant
- REACH-related documentation
- Project-specific test reports
- Customer-required material declarations
The exact documentation depends on the selected silicone, pigments, coatings, printing inks and target market.
A raw-material report should not be presented as proof for every finished keypad configuration.
How POS Machine & Terminal Silicone Keypads Are Manufactured
Terminal Requirement Review
Every project begins with the complete application information. SKF reviews the terminal drawing, keypad dimensions, PCB layout, key count, key functions, target actuation force, graphic requirements, backlighting needs, operating environment and expected order volume.

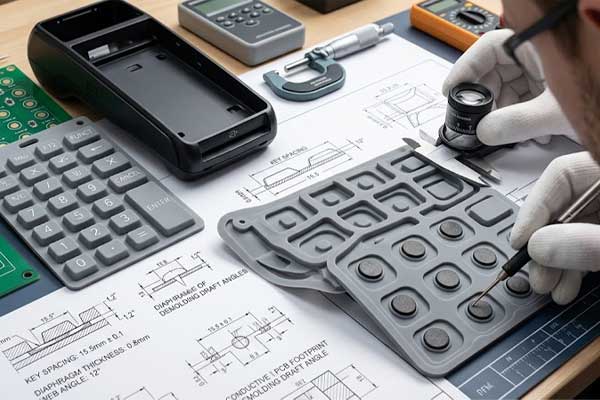

Keypad & DFM Evaluation
The engineering team evaluates key spacing, web geometry, diaphragm thickness, draft, wall transitions and demolding requirements. Conductive pill locations receive special attention because small positional errors can affect the electrical contact margin.

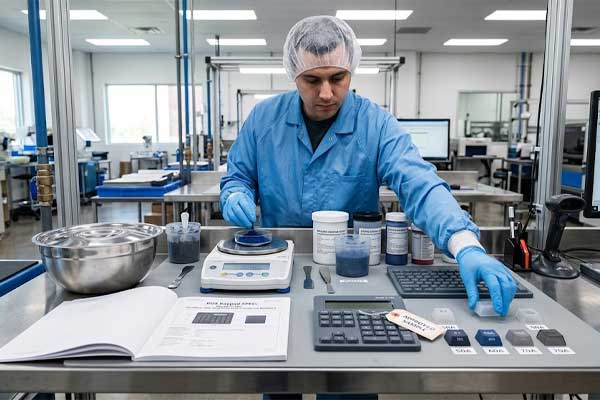

Material & Compound Preparation
The approved silicone compound, color and required additives are prepared according to the confirmed specification. Different keypad structures may require different hardness levels or optical characteristics, especially when opaque and translucent areas are combined.

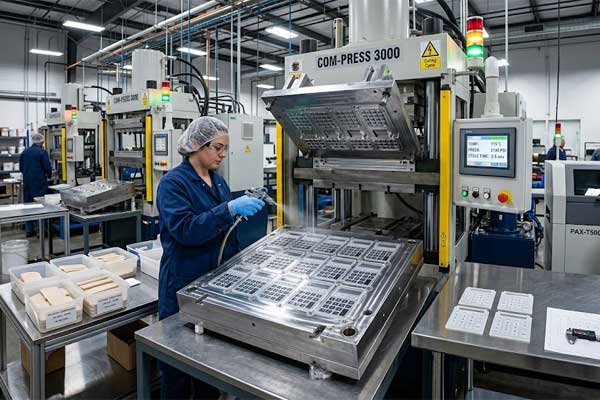

Silicone Molding
The silicone compound is formed using the selected production process, with compression molding commonly used for molded silicone keypad structures. Mold temperature, pressure, curing conditions and cavity design are controlled to produce consistent key geometry.

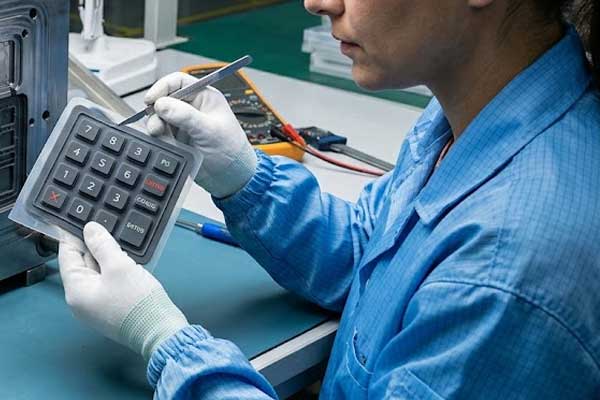

Demolding & Trimming
After curing, the keypad is removed from the tooling and excess flash is trimmed. The perimeter, key webs, keycaps and conductive contact areas are checked for molding defects that could affect assembly or tactile response.

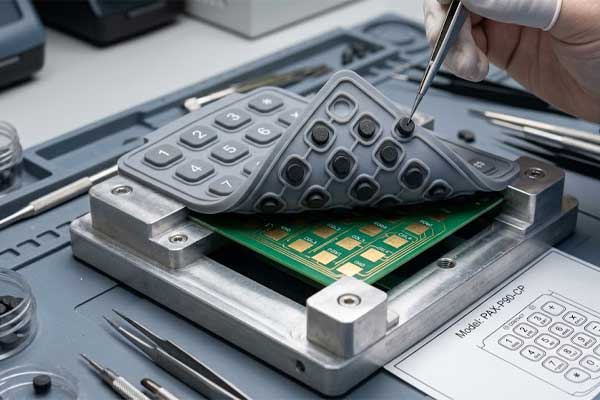

Conductive Pill Application
Conductive carbon pills are positioned according to the approved PCB contact layout. Positioning accuracy is critical because the conductive element must meet the PCB contact at the intended point of key travel.
Graphic & Surface Processing
Screen printing, pad printing, laser etching, coating or other approved finishing processes are completed according to the artwork. Backlit designs receive additional checks around translucent windows and graphic alignment.
Quality Inspection
Finished keypads are checked against the approved sample and production specification. Inspection can cover appearance, dimensions, color, graphics, tactile response, conductive contact performance and packaging requirements.
POS Machine & Terminal Silicone Keypad Quality Control
Quality control covers more than visual appearance. For POS keypads, tactile consistency, conductive contact position and graphic durability directly affect the terminal’s user interface.
AQL 2.5 / 4.0 Standard Inspection
Final random sampling can be arranged using agreed inspection plans:
AQL 2.5
Major Defects
AQL 4.0
Minor Visual Defects
Another inspection standard can be applied when specified in the purchase order.
Approved Sample Control
The approved keypad sample becomes the production reference for:
- Key shape
- Key dimensions
- Overall thickness
- Color
- Tactile appearance
- Graphic position
- Conductive pill layout
- Surface finish
- Packaging
Incoming Material Review
Silicone compounds, pigments, conductive materials and supplier documentation are reviewed against the confirmed project requirements.
In-Process Inspection
Production checks focus on molding completeness, flash, key web structure, color consistency and visible surface defects.
Appearance
Finished keypads are checked for:
- Tears
- Excessive flash
- Incomplete molding
- Contamination
- Surface damage
- Air-related molding defects
- Deformed keycaps
Dimensions
Overall keypad dimensions, key height, key pitch, critical wall sections and other agreed dimensions are verified against the drawing.

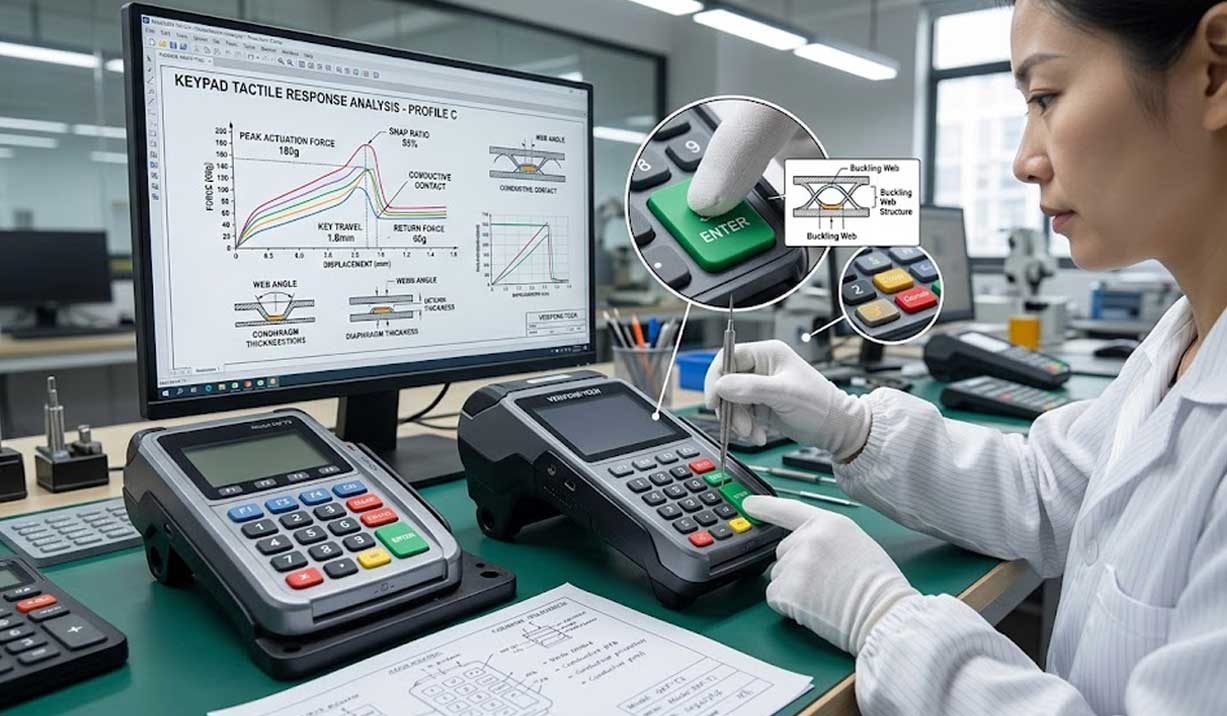

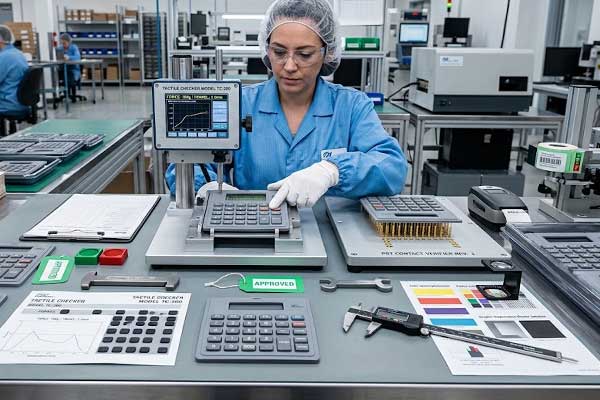

Tactile Response
Key force and travel can be checked against an agreed testing method or customer specification.
The purpose is not simply to confirm that every key has the same number. Frequently used key groups and different key sizes may require different force targets.
Conductive Contact
Conductive pill position, appearance and electrical response are checked against the approved structure and PCB interface.
Graphics
Inspection covers:
- Character position
- Character size
- Missing print
- Blurred edges
- Color consistency
- Laser contrast
- Graphic alignment
Backlighting
Backlit keypads can be checked for graphic alignment, translucent areas and visible light leakage according to the agreed sample standard.
Packaging
Product quantity, labels, bags, cartons and customer-specific packaging instructions are verified before shipment.
Typical POS Machine & Terminal Silicone Keypad Specifications
| Specification | Typical Reference |
|---|---|
| Product | Custom POS machine & terminal silicone keypad |
| Applications | POS terminals, payment terminals, PIN pads, handheld POS and self-service terminals |
| Material | Silicone rubber |
| Hardness | 40–70 Shore A, depending on structure |
| Key type | Numeric, function, navigation and custom keys |
| Actuation force | Custom target, commonly within 100–300 gf depending on key design |
| Key travel | Custom according to web geometry and PCB interface |
| Snap ratio | Custom according to required tactile response |
| Conductive contact | Carbon pill or approved conductive contact |
| Conductive pill position | Matched to PCB contact layout |
| Colors | Standard or custom silicone colors |
| Surface | Matte, molded texture or approved coating |
| Graphics | Screen printing, pad printing or laser etching |
| Backlighting | Translucent silicone and custom light-transmission areas |
| Sealing | Perimeter sealing features available |
| Molding process | Silicone compression molding or suitable silicone molding process |
| OEM / ODM | Available |
| Existing-tool quantity | From 500 pieces for suitable configurations |
| New custom tooling quantity | From 3,000 pieces |
| Sample lead time | 5–10 working days |
| Custom tooling | 10–20 working days |
| Mass production | 15–25 working days after approval |
| Inspection | Approved sample plus agreed AQL or customer standard |
| Packaging | Bulk bags, production packaging, retail boxes or custom packaging |
Final specifications are confirmed according to the terminal design, PCB interface, silicone compound, graphics, tooling and approved sample.
Why Work with SKF for POS Machine & Terminal Silicone Keypads
Silicone Keypad Manufacturing Experience
SKF focuses on custom silicone components and keypad manufacturing for OEM and ODM projects.
Our engineering approach starts with the complete component interface rather than treating keypad dimensions, tactile response and conductive contacts as separate issues.
Engineering Review Before Tooling
POS keypad tooling can become expensive to modify once key webs, conductive pills and graphics are built into the mold.
Before tooling, SKF reviews the keypad drawing and PCB interface to identify potential issues with key travel, web structure, conductive pill positioning, demolding and housing fit.
Tactile Engineering Support
Tactile response is one of the most important differences between generic silicone keypads and application-specific POS keypads.
SKF can review actuation force, snap ratio, travel and return behavior. The webbing angle and diaphragm thickness profile are considered together because changing one dimension can affect the complete force curve.
Conductive Pill Positioning
Conductive pill alignment is another area where manufacturing experience matters.
A keypad can have correct overall dimensions while still producing inconsistent switching if the pill is not centered properly over the PCB contact. SKF checks the mechanical relationship between the key web, pill and PCB contact rather than relying only on the outer keypad dimensions.
Sample-Based Production
Mass production follows the approved sample and confirmed specification.
The approved sample establishes the reference for key appearance, color, graphics, tactile behavior and critical dimensions before the production run proceeds.
Production Capacity
SKF supports scalable silicone production for OEM and repeat orders.
Actual production capacity depends on keypad size, cavity arrangement, molding cycle, secondary processing and inspection requirements.
Export Project Support
SKF supports international OEM and ODM customers with engineering communication, sampling, production coordination, inspection, packaging and shipment preparation.
The project can be developed from drawings, 3D files, physical reference samples or an existing keypad that requires replacement or redesign.
POS Machine & Terminal Silicone Keypad FAQ
What is the MOQ for POS silicone keypads?
The MOQ starts from 500 pieces for suitable existing-tool configurations and from 3,000 pieces for new custom-molded keypad designs. The actual quantity depends on the keypad structure, tooling requirements, colors, graphics, conductive contacts and packaging.
Can you make silicone keypads for payment terminals and PIN pads?
Yes.
SKF develops numeric, function and custom silicone keypads for payment terminals, PIN pads, POS machines and related transaction equipment.
The keypad can be designed around the existing housing and PCB contact layout.
Can you match the tactile force of an existing POS keypad?
Yes.
Provide an existing sample or target force specification when available. SKF can evaluate actuation force, travel, snap response and return behavior, then adjust the silicone web structure during development.
Can POS silicone keypads use conductive carbon pills?
Yes.
Conductive carbon pills are widely used for silicone keypad switching. Their diameter, thickness, resistance and position are matched to the PCB contact design and required electrical performance.
Can you make backlit keypads for POS terminals?
Yes.
Translucent silicone, selected graphic windows and controlled light-transmission areas can be incorporated into the keypad.
The complete backlight system also depends on the PCB LEDs, light guide structure and terminal housing.
Can the silicone keypad make the POS terminal waterproof?
The keypad can contribute to the terminal's sealing structure, but it does not determine the final waterproof or IP rating by itself.
The keypad, housing, sealing interface, PCB protection and assembly tolerances need to be evaluated as one system.
Which graphic method is best for POS keypad legends?
The best method depends on the legend design, surface geometry, expected cleaning, durability requirement and whether the keypad is backlit.
Screen printing suits many standard graphics. Pad printing works well for smaller or curved symbols. Laser etching can provide durable legends, while translucent graphics are suitable for selected backlit designs.
How long do POS silicone keypads last?
Service life depends on the silicone compound, web geometry, actuation force, pressing frequency, conductive contact design, environment and cleaning conditions.
SKF can develop the keypad around your required operating cycle and validate critical performance using an agreed test method.
Can you customize the keypad color to match our terminal housing?
Yes.
Custom silicone colors can be developed according to the approved color reference or physical sample. A physical sample is recommended before mass production because silicone thickness, surface finish and surrounding materials can affect visual color perception.
Can you manufacture replacement silicone keypads from an existing sample?
Yes.
SKF can evaluate an existing keypad or physical sample and determine the critical dimensions, key structure, conductive pill arrangement and tooling requirements.
A physical sample is especially useful when the original engineering drawing is unavailable.
Can you provide material or compliance documentation?
Available documentation depends on the selected silicone, pigments, coatings, printing inks and destination market.
Provide the required market and standard so SKF can confirm the applicable documentation for the actual keypad configuration.
What information do you need to quote POS machine silicone keypads?
Please provide:
- Target order quantity
- Terminal model or application
- Keypad drawing or 3D file
- Key count and layout
- Overall dimensions
- PCB contact layout
- Target actuation force
- Conductive pill requirements
- Silicone hardness if specified
- Color reference
- Graphic artwork
- Backlighting requirements
- Sealing requirements
- Existing physical sample if available
- Packaging requirements
- Destination country
- Required documentation or testing
- Target delivery date
