Engineered Silicone Keypads Customization
We design and manufacture custom silicone keypads with precise tactile response, stable conductivity, and long-term durability — tailored for demanding industrial, medical, and electronic applications.
- Actuation Force Engineered to ±10g Tolerance
- Up to 10 Million Lifecycle Performance
- Carbon / Gold Pills with Low Contact Resistance
- IP65–IP67 Sealing Structures Available
- Backlit, Laser Etched & Multi-Shot Molding

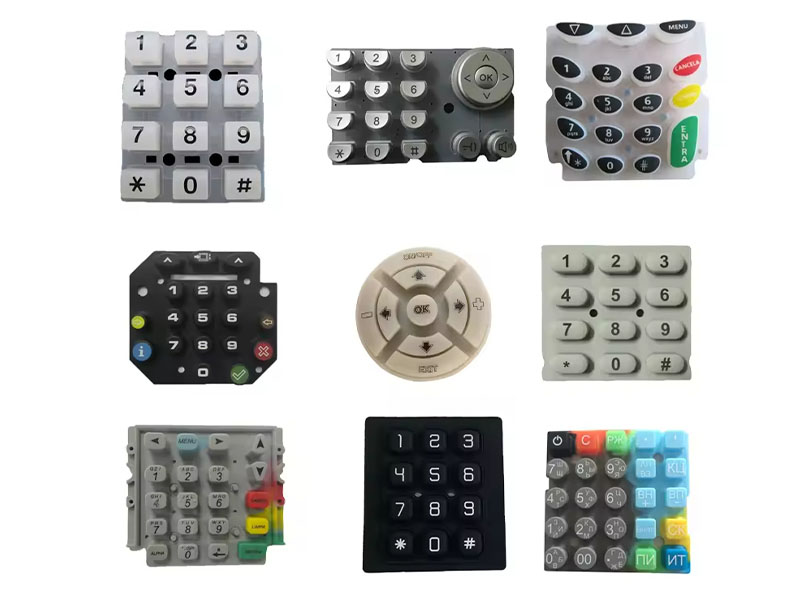

What Makes a High-Performance Silicone Keypad?
A high-performance silicone keypad is not defined by appearance, but by how consistently it performs under repeated use and environmental stress.
Key performance factors include:
– Consistent actuation force across all keys
– Stable electrical conductivity over millions of cycles
– Clear tactile feedback (optimized snap ratio)
– Resistance to wear, moisture, and contamination
We engineer every parameter to ensure your keypad performs reliably in real-world conditions — not just in lab testing.
Precision Control of Keypad Mechanics
We design silicone keypads based on measurable engineering parameters, not guesswork.
Actuation Force Control
Range: 80g–300g
Tolerance: ±10g achievable
Controlled by webbing thickness & angle
Tactile Response Optimization
Snap ratio: 40%–70%
Crisp feedback without fatigue
Balanced for industrial vs consumer usage
Travel Distance Engineering
Range: 0.3mm – 1.2mm
Custom dome geometry
Material Selection (Shore A)
30A – 70A silicone
Environmental resistance (UV, temperature, chemicals)

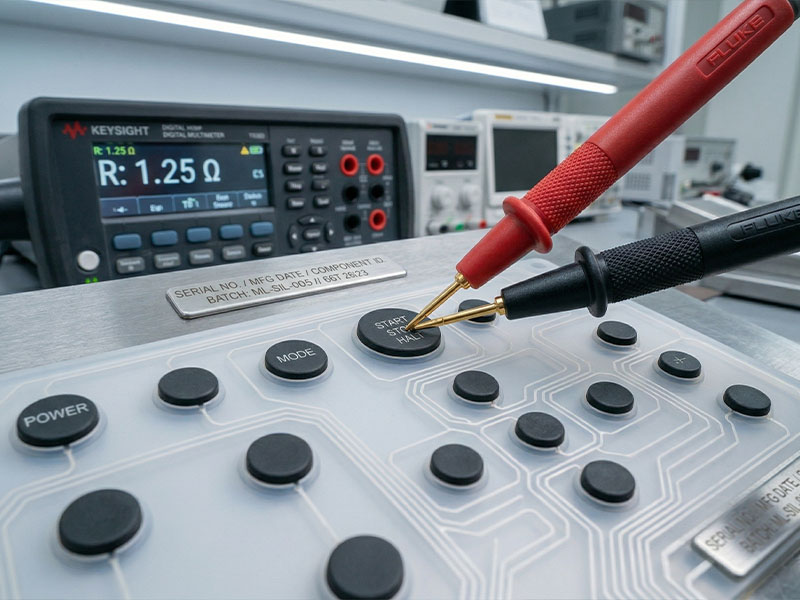

Electrical Reliability
Electrical performance is critical for long-term reliability — especially in medical and industrial devices.
Carbon Pills
- Cost-efficient
- Standard Carbon Pills (<150 Ohms)
Gold Pills
- Ultra-low resistance
- High reliability for critical systems
Contact resistance consistency is tightly controlled to prevent signal failure.

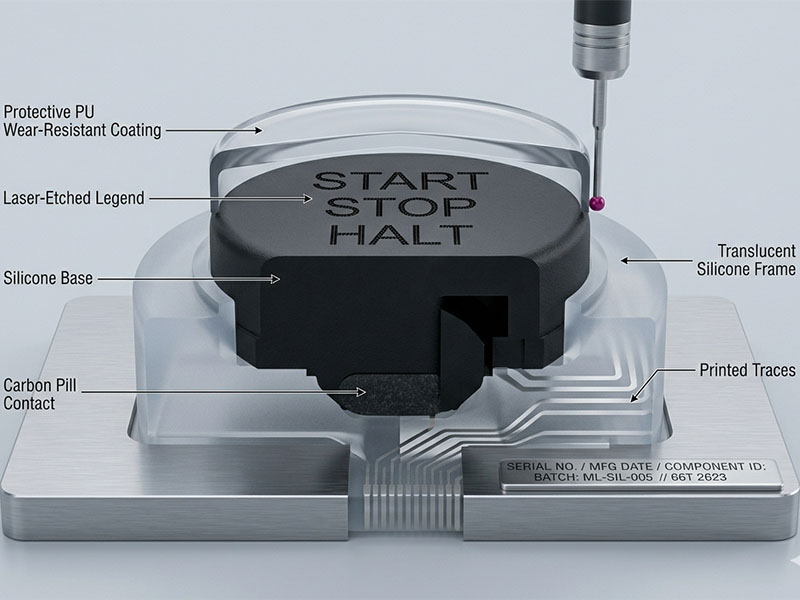

Durability & Lifecycle Engineering
A silicone keypad must maintain both mechanical and electrical performance over time.
- Lifecycle: 1M – 10M cycles
- Wear-resistant coatings (PU / epoxy)
- Abrasion-resistant legends
- Anti-oil & anti-UV material options
Designed for long-term field use, not short-term deployment
Advanced Customization Options
- Silk screen printing
- Laser etching (for backlight clarity)
- PU coating (anti-wear)
- Epoxy dome (premium tactile zones)

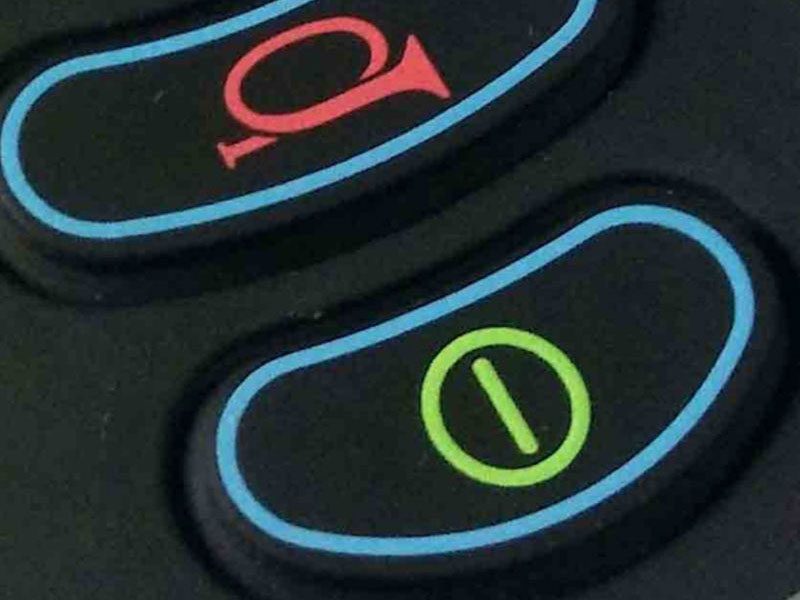

- LED backlit silicone keypad
- Light guide optimization
- Light leakage control

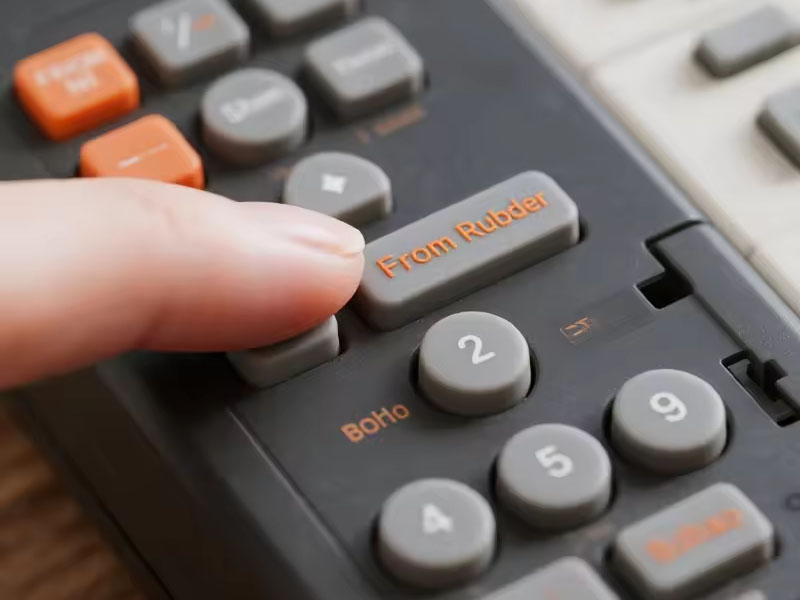

- Sealing ribs & compression zones
- Integrated housing interface
- IP65–IP67 achievable
👉 Prevents dust, moisture, and liquid ingress
How to Customize Your Silicone Keypads
We provide a complete in-house development process to reduce risk and accelerate your project timeline.
For more information about available solutions, explore our product catalog featuring a wide range of silicone keypad products.
Requirement Evaluation
Our engineers analyze your project parameters, including actuation force, operating environment, and electrical requirements. We review your 2D/3D CAD files (.step/.stp) to ensure feasibility. We identify potential manufacturing constraints early and suggest structural optimizations to meet your target lifecycle.
Engineering Design (Force & Structure)
We define critical mechanical properties by engineering the silicone webbing angle and thickness. This precisely calculates the snap ratio and travel distance to achieve your exact ±10g actuation force tolerance. We also design necessary sealing structures and backlight integration paths.

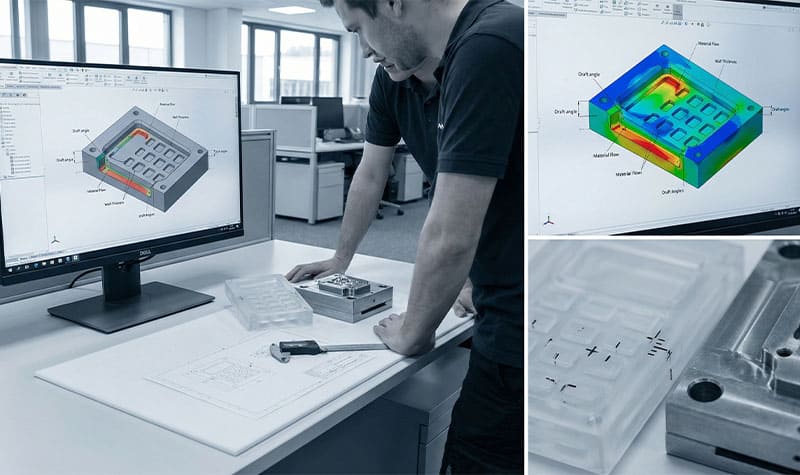

DFM Feedback
Within 24 to 48 hours, we provide a comprehensive Design for Manufacturability (DFM) report. This covers tooling layout proposals, gating locations, and draft angle verifications. We highlight potential molding risks, allowing for necessary structural adjustments before you invest in steel tooling.

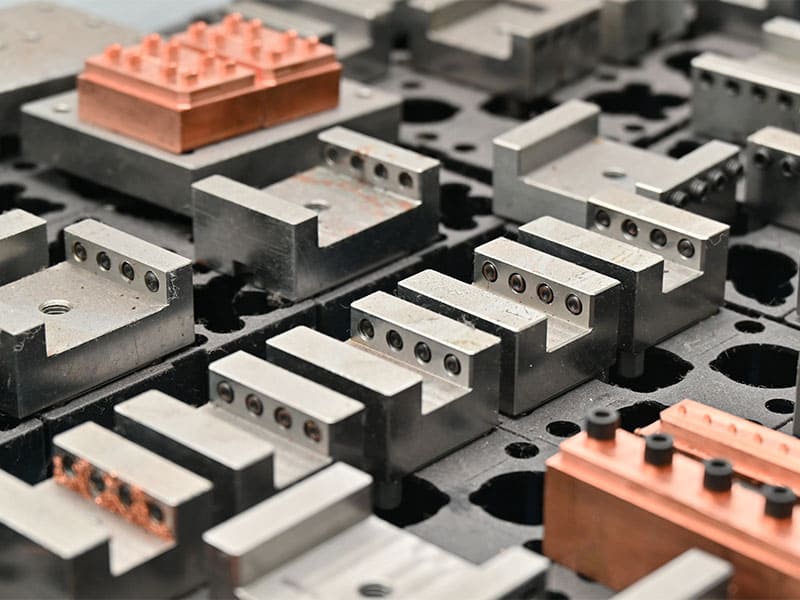

Tooling Fabrication
Utilizing high-precision CNC machining and EDM, our in-house facility manufactures the steel injection molds. We control mold cavity tolerances down to 0.01mm to ensure consistent dimensions. Prototype tooling typically takes 7-10 days, while multi-cavity mass production molds take 15-20 days.

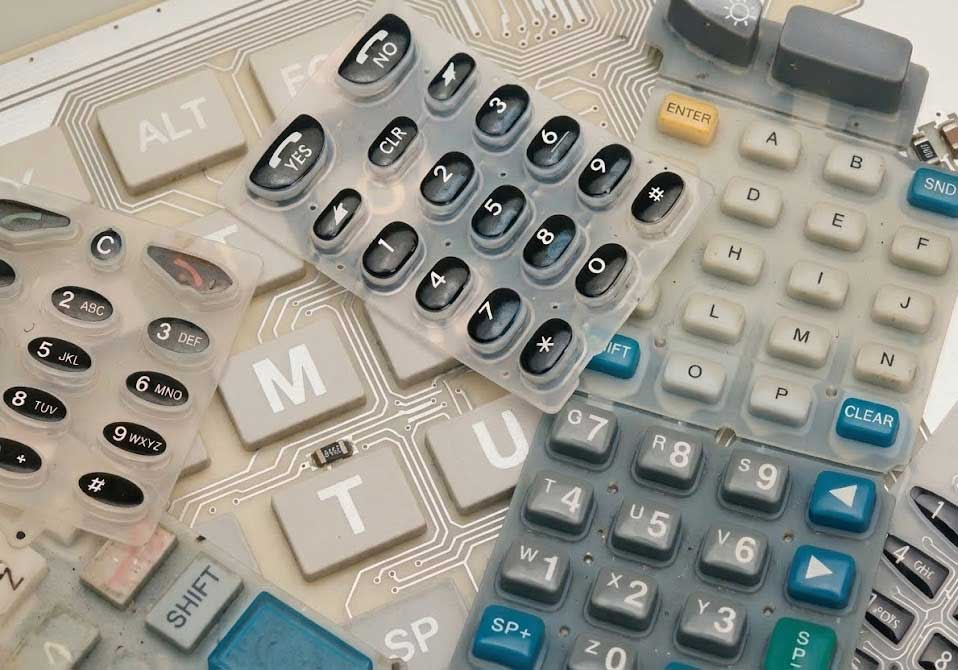

Prototype Validation
We produce initial samples using the exact Shore A silicone and carbon pills specified. Our QC team measures the force-displacement curve, contact resistance (<150 ohms), and dimensions. You receive physical prototypes for functional testing and final approval before volume manufacturing.
Mass Production & QC
Upon approval, we scale to mass production. We support flexible MOQs and maintain strict batch-to-batch consistency, delivering reliable components for your assembly schedules.
Molding & Curing
Vacuum compression molding and secondary post-curing (200°C) to eliminate VOCs.
Surface Treatment
Application of wear-resistant PU, Matte, or Epoxy coatings to protect legends.
Quality Control
100% inspection including force-displacement testing and contact resistance checks.
Why Engineers Choose Us
Engineering-first approach (force, feedback, reliability) In-house tooling & molding Fast prototyping (7–10 days) Export experience (US / EU standards) Consistent production quality👉 Focused on performance, not just price
Silicone Keypads Used for diverse Industries

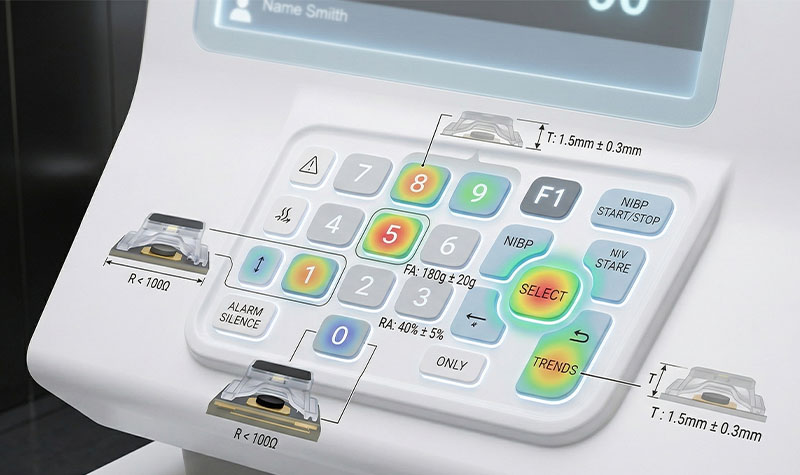

Engineered with USP Class VI biocompatible silicone. Features easy-to-clean, anti-bacterial surfaces ensuring reliable operation for critical patient care equipment.

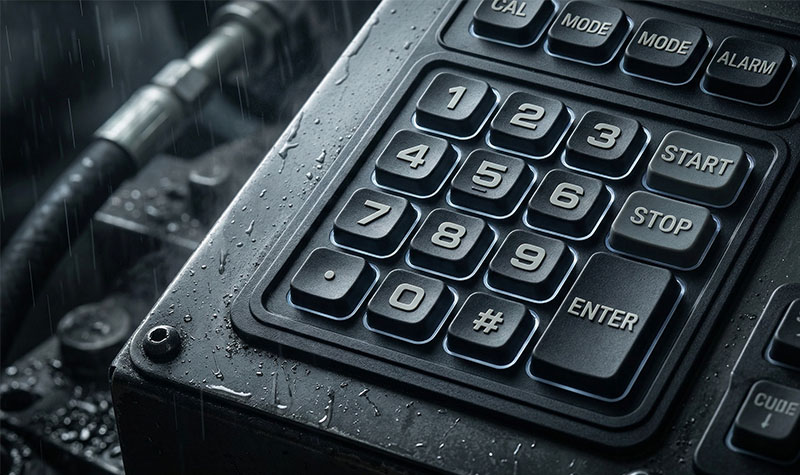

Ruggedized for harsh environments. Features IP67 waterproof sealing, chemical resistance, and heavy-duty actuation force optimized for gloved operation.

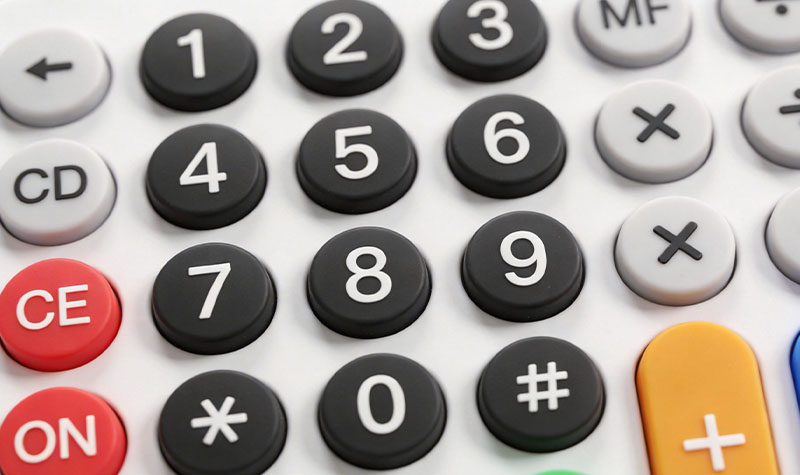

Designed for high-frequency usage. Delivers crisp tactile feedback, wear-resistant PU coating, and up to 10 million lifecycles for commercial terminals.

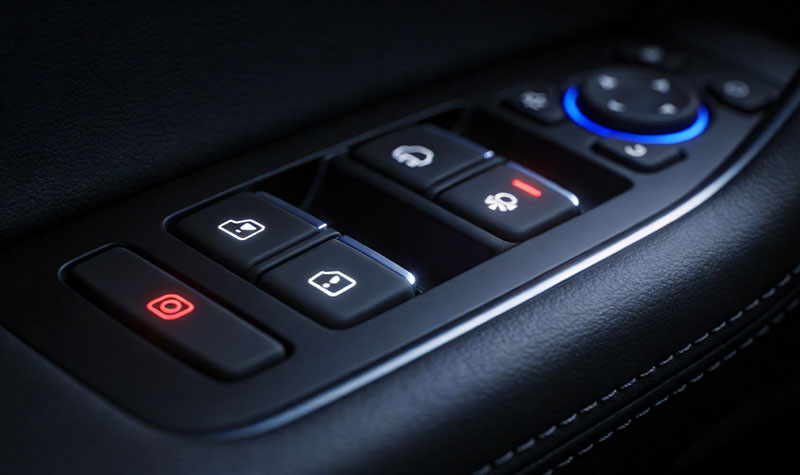

Built for extreme thermal conditions. Provides consistent actuation force, UV resistance, and structural stability under continuous mechanical vibration.
We are ready for any size customers
Start-Ups & Small Businesses
Rapid prototyping and flexible low-MOQ production. We provide dedicated engineering support to validate your initial design without heavy upfront tooling costs.
Mid-Size Companies
Efficient pilot runs and scalable multi-cavity tooling. Achieve consistent ±10g force tolerances and reliable component supply as your market presence expands.
Large Enterprises
Automated mass production exceeding 1M+ units monthly. We ensure strict batch-to-batch consistency, ISO-certified quality control, and stable global supply chain integration.
Frequently Asked Questions
What is your standard lead time for custom silicone keypads?
For initial prototyping, tooling takes 7–10 days with samples ready shortly after. Mass production tooling typically requires 15–20 days. Once approved, standard production lead times are 2–3 weeks, depending on order volume and secondary processes (like PU coating or laser etching).
Can you achieve specific actuation forces for our design?
Yes. By engineering the silicone webbing thickness and angle, we can precisely control the actuation force from 80g to 300g, maintaining a tight tolerance of ±10g. We will provide a DFM report to validate your design's force and tactile feedback before tooling.
Do you offer solutions for backlit keypads?
Absolutely. We manufacture laser-etched silicone keypads with translucent silicone bases. The surface is sprayed with layers of opaque paint (usually black or dark grey), and then symbols are laser-etched to expose the translucent silicone beneath, allowing LED light to pass through clearly without light leakage.
What is the expected lifespan of your silicone keypads?
Depending on the design and application, our keypads are engineered for high durability. Standard designs support 1 million to 3 million cycles. For heavy-duty commercial or industrial applications, we can optimize the structure and add wear-resistant PU or Epoxy coatings to achieve up to 10 million cycles.
What files do you need for a DFM evaluation and quote?
To provide the most accurate engineering evaluation and quote, please send us your 2D drawings (PDF) with tolerance and material specifications, along with your 3D CAD files (.STEP or .STP format). If you have specific electrical requirements (like carbon pill resistance), please include those as well.
