Pad Printed Silicone Keypads

This page presents our custom pad printed silicone keypads designed for OEM/ODM projects requiring clear graphic legends, durable surface marking, and stable interface performance. You can explore different keypad structures, layouts, and printing configurations suitable for industrial control panels, consumer devices, and electronic interface systems. Each pad printed silicone keypad in this collection supports flexible customization based on drawing, function layout, and production requirements.

Clear Pad Printed Legends

OEM/ODM Custom Layouts

Multi-Shape Keypad Structures

Industrial-Grade Printing Stability

Request a Quote

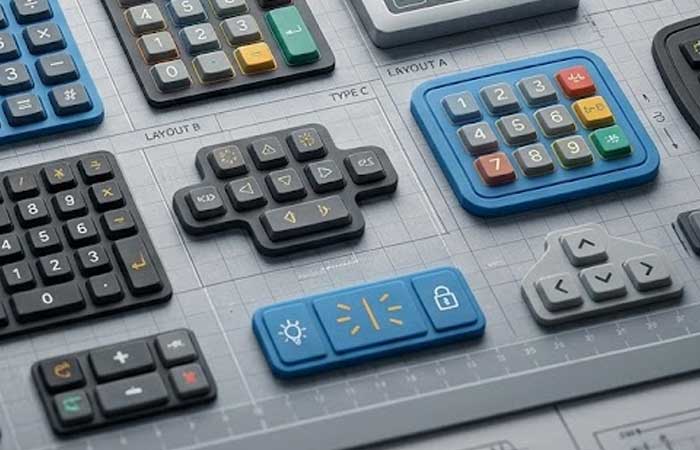

Various multi colored custom Pad printed silicone keypads including numerical grids and navigation clusters are displayed on an engineering blueprint grid mat

What Are Pad Printed Silicone Keypads?

Pad Printed Silicone Keypads are silicone rubber keypads that use pad printing (also known as tampography) to apply graphics, symbols, or legends onto the key surface. The process transfers ink from an etched plate onto the curved or textured silicone surface using a soft silicone pad, making it suitable for uneven geometries that cannot be printed by flat methods. This printing technique is commonly used for adding letters, icons, and functional markings on silicone keypads used in control interfaces, electronic devices, and industrial equipment. The printed layer is typically combined with a protective coating to improve durability and resistance to wear, friction, and environmental exposure.

Key Features of Pad Printed Silicone Keypads

Precise Pad Printing Detail

Pad printing delivers clear legends, symbols, and icons on silicone keypads, suitable for fine keypad layouts and multi-key control panels.

Curved Surface Printing Compatibility

Pad printing silicone keypads can apply graphics on curved, textured, or uneven silicone button surfaces without distortion.

Multi-Color Printing Capability

Supports multi-color pad printed silicone keypads for function grouping, status indication, and UI design requirements.

Strong Ink Adhesion Layer

Special silicone ink bonds tightly to keypad surface, reducing fading and improving durability in daily operation.

Coating Protection Option

Optional PU or protective coating enhances abrasion resistance for industrial pad printed silicone keypads in high-use environments.

Cost-Effective Small Batch Production

Pad printing silicone keypad process is suitable for prototypes and low-to-medium volume OEM/ODM keypad manufacturing.

Versatile Solutions for Demanding Sectors

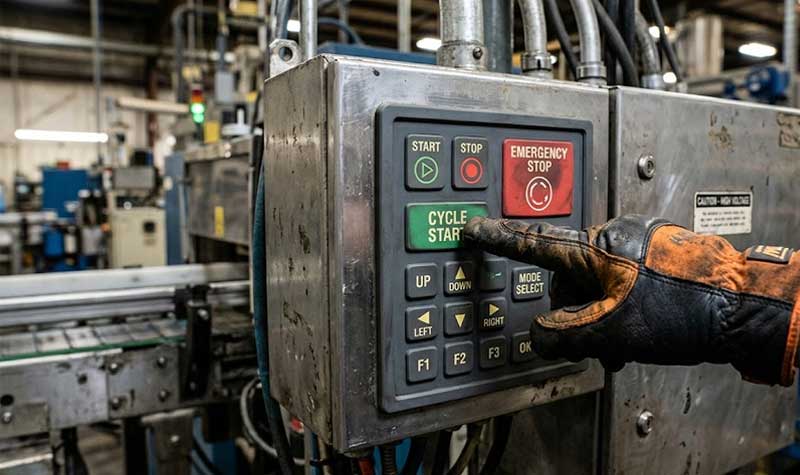

A gloved hand presses a green cycle start button on pad printed silicone keypads integrated into a rugged industrial control panel within a factory environment

Sector 01

Industrial Control Systems

Pad printed silicone keypads are widely used in industrial control panels, HMI devices, and automation equipment. Clear legends and durable printed symbols help operators identify functions quickly in complex workflows. They support frequent operation, glove use, and long shift environments where visibility and reliability are critical.

Wear-Resistant Legends

Maintains symbol clarity under repeated pressing and friction in industrial use.

Glove-Friendly Operation

Stable tactile response supports accurate input with work gloves.

Sector 02

Medical & Laboratory Equipment

In medical devices and lab instruments, pad printed silicone keypads provide readable and organized control interfaces for precise operation. The printed markings support function separation, helping reduce input errors during testing, monitoring, and analysis procedures. Coating options improve hygiene compatibility and surface cleanability.
Clear Functional Markings
Easy-Clean Surface Option

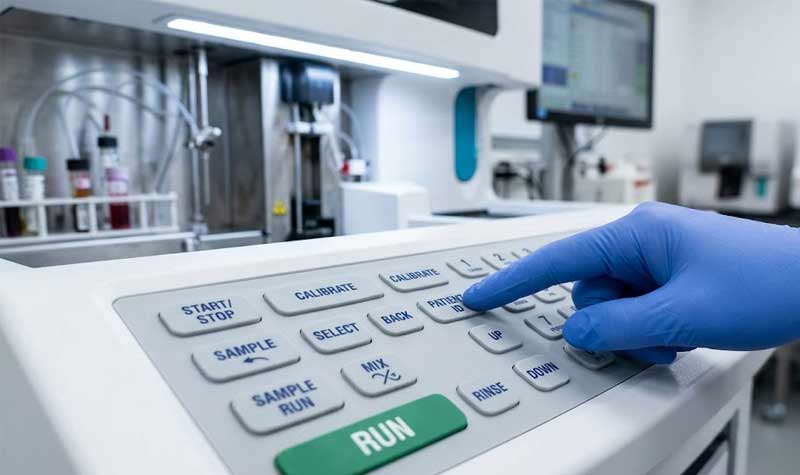

A hand wearing a blue medical glove operates pad printed silicone keypads featuring clear functional markings on a laboratory testing instrument interface
A hand holds a television remote control and presses the central button on its multi color pad printed silicone keypads in a living room setting

Sector 03

Consumer Electronics & Devices

Pad printed silicone keypads are used in remote controls, smart home devices, and handheld electronics. They allow compact layouts with multiple function keys, enabling intuitive user interaction. Multi-color printing helps distinguish power, mode, and navigation functions in small interface spaces.
Request A Quote

Sector 04

Marine & Outdoor Equipment

For marine systems, outdoor control units, and exposed electronics, pad printed silicone keypads provide readable interfaces under humidity, UV exposure, and temperature changes. When combined with protective coatings, printed legends remain stable in harsh environments and resist fading from sunlight and salt exposure.
UV & Moisture Resistance
Stable Print Performance

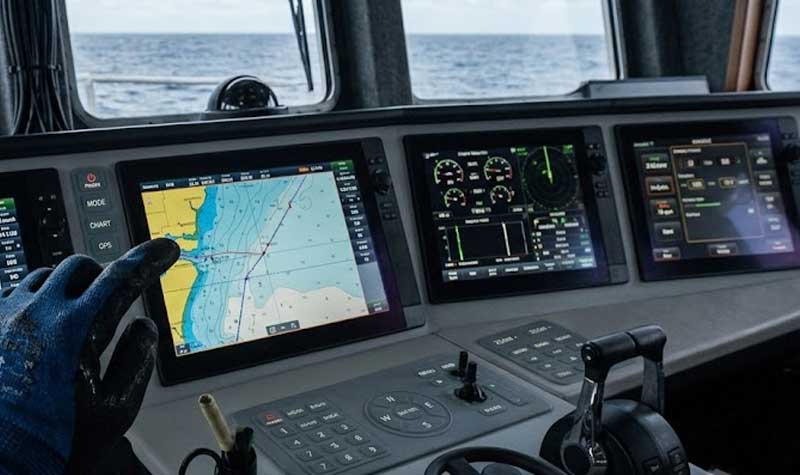

A gloved hand points to a navigation screen on a ships bridge next to a marine console featuring integrated pad printed silicone keypads

Technical Specifications

Property (Attribute)Standard Industrial ValueEngineering Significance / Advantage
Base MaterialHigh-Consistency Silicone Rubber (HCR)Provides the elastic structural matrix for the keys and outer sealing lip.
Graphic ProcessPrecision Pad Printing (Tampo Printing)Enables crisp transfer of high-resolution, multi-color legends onto complex shapes.
Ink TypeSilicone-Based Ink (Thermal / UV Cured)Chemically cross-links with the substrate to prevent peeling or delamination.
Registration Tolerance± 0.10mm to ± 0.20mmEnsures perfect alignment for multi-color overlays and tightly packed text icons.
Abrasion Resistance> 50 to 100 Cycles (RCA Tester)Standard printed ink; drastically multiplied when combined with protective overcoats.
Surface Protective CoatingPU Matte Coating / UV Hard-coat / EpoxyCrucial shield that prevents finger friction and oils from wearing away the printed ink.

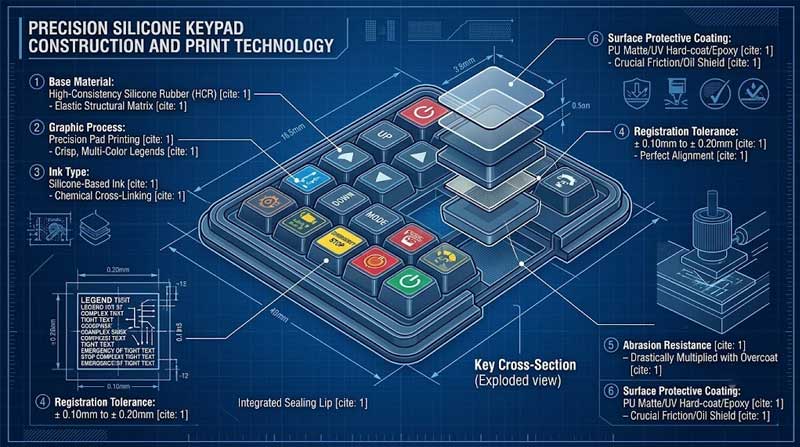

A technical blueprint diagram illustrates the multi layer construction and printing technology of precision pad printed silicone keypads

“All our keypads are tested to meet rigorous international quality standards including ISO and ASTM requirements.”

Customization

  • Precision Legend Layout Design
  • Multi-Color Pad Printing Customization
  • Industrial-Grade Silicone Material Selection
  • Protective Coating & Surface Finish Options

“We provide full OEM/ODM customization for pad printed silicone keypads to match different device structures, interface layouts, and functional requirements. From legend design to material selection and surface protection, every step can be adjusted based on your engineering drawings, application environment, and production volume needs. This ensures consistent fit, stable printing quality, and reliable keypad performance in real-world use.”

Consult Our Engineers

Pad Printed Silicone Keypad Design Options

Industrial Control Pad Printed Silicone Keypad

Pad printed silicone keypad with multi-function layout including ON/OFF central button and MENU/ESC directional keys. Designed for industrial control panels, the pad printed legends ensure clear function labeling and reduce operator input errors in complex control environments.
GET A QUOTE

Circular Multi-Button Pad Printed Silicone Keypad

Circular pad printed silicone keypad with segmented function keys for device mode switching and feature control. Pad printed icons provide clear identification for each button, supporting compact UI design in handheld or embedded control systems.
GET A QUOTE

Single Key Pad Printed Silicone Button

Standalone pad printed silicone keypad button with OK legend for confirmation input. High-contrast pad printing ensures clear visibility and stable legend adhesion for frequent press confirmation functions in electronic devices.
GET A QUOTE

Directional Control Pad Printed Silicone Keypad

4-way navigation pad printed silicone keypad with directional arrows for menu control and interface navigation. The pad printed symbols are optimized for repeated use, maintaining clarity under high-frequency operation and tactile feedback conditions.
GET A QUOTE

Numeric Pad Printed Silicone Keypad

Compact pad printed silicone numeric keypad with PUSH TO TALK function marking. Designed for communication devices requiring fast numeric input and function labeling, with durable pad printed legends for long-term use.
GET A QUOTE

Extended Function Pad Printed Silicone Keypad

Multi-function pad printed silicone keypad with extended keys including MEM, CHECK, MESSAGE, and ENTER. Suitable for advanced control interfaces where pad printed legends support multi-command input and structured operation layouts.
GET A QUOTE

Pad Printed Silicone Keypad Manufacturing Process

SKF Silicone kaypad factory 21

STEP 1: Molding

High-consistency rubber compression for base geometry.

Epoxy Doming

STEP 2:Etching

Laser removal of opaque spray for legend clarity.

SKF Silicone kaypad factory 5 1

STEP 3:Inspection

Optical check for uniformity and icons.

Spray Coating

STEP 4:Coating

PU or UV protective layers for abrasion resistance.

SKF Silicone Control

STEP 5:Quality Control

Final functional audit and ISO standard approval.

Frequently Asked Questions

It is a silicone rubber keypad where legends, icons, or text are applied using pad printing technology for clear and detailed markings.
Yes, pad printed silicone keypads use special silicone inks that bond to the surface, and can be enhanced with protective coating for longer lifespan.
Yes, multi-color pad printed silicone keypads are available for function grouping, UI design, and device control differentiation.
Pad printing works on flat, curved, and textured silicone keypad surfaces, making it suitable for complex keypad geometries.
Yes, OEM/ODM customization is available, including key layout, legend design, color, and structure based on technical drawings.
They are widely used in industrial control systems, consumer electronics, medical devices, and outdoor electronic equipment.
