Overmolded Silicone Keypads

This page showcases a range of overmolded silicone keypads for OEM/ODM projects, covering different structures, layouts, and integration designs for industrial and electronic devices. Each keypad in this category is engineered for stable frame bonding, consistent tactile response, and reliable fit with plastic or metal housings. It is designed for B2B buyers looking for customized silicone keypad solutions for mass production and long-term supply.

Stable Overmold Bonding

OEM/ODM Custom Layouts

Industrial-Grade Structure Fit

Consistent Tactile Control

Request a Quote

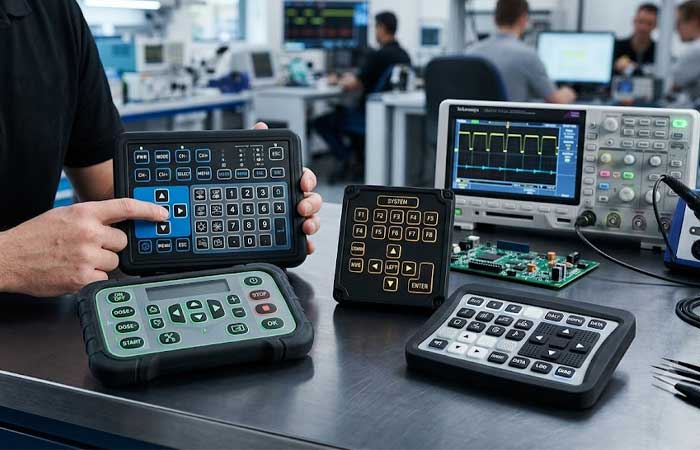

A variety of custom overmolded silicone keypads are displayed on a laboratory workbench next to electronic testing equipment and circuit boards

What Are Overmolded Silicone Keypads?

Overmolded silicone keypads are keypads manufactured by molding liquid silicone rubber (LSR) or solid silicone directly over a base structure, usually plastic or metal. The silicone layer is permanently bonded to the substrate during the molding process, forming a single integrated component. This structure improves stability and ensures precise alignment between the soft-touch surface and the rigid support frame. Compared with separate assembly methods, overmolding reduces part movement and simplifies assembly. The process is commonly used in applications that require durability, environmental sealing, and consistent tactile performance over long-term use.

Key Features of Overmolded Silicone Keypads

Strong Silicone-to-Substrate Bonding

Silicone is directly overmolded onto plastic or metal frames, creating a permanent bond that prevents delamination in long-term industrial use.

High Dimensional Stability

Overmolding structure keeps keypad alignment stable, ensuring accurate key positioning in OEM electronic assemblies.

Improved Water & Dust Sealing

Seamless silicone layer helps achieve better IP-rated sealing for waterproof silicone keypad applications in outdoor devices.

Reduced Assembly Parts

Overmolded design integrates keypad and frame into one part, lowering assembly steps and reducing manufacturing tolerance issues.

Consistent Tactile Response

Controlled silicone hardness and dome structure provide stable actuation force for industrial silicone keypad and control panels.

Enhanced Mechanical Durability

The bonded structure resists vibration, impact, and repeated pressing, suitable for high-cycle industrial and medical equipment keypads.

Versatile Solutions for Demanding Sectors

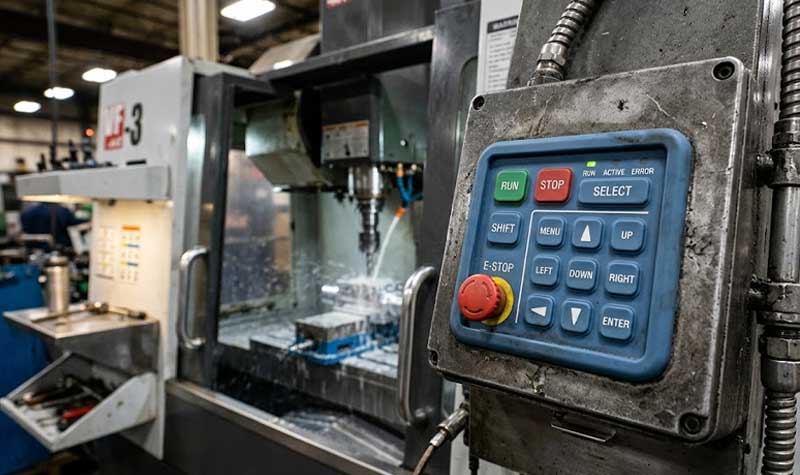

industrial control panel featuring an integrated overmolded silicone keypad with buttons for CNC machinery control set against the background of an active factory workshop

Sector 01

Industrial Control Equipment

Overmolded silicone keypads are widely used in industrial control panels, CNC machines, and automation systems. The overmolded structure ensures stable key alignment even under vibration and long working cycles. It supports waterproof and dustproof enclosure designs, helping OEM manufacturers improve reliability in harsh factory environments.

Vibration Resistance

Stable structure under continuous machine vibration

IP Sealing Support

Helps achieve waterproof and dustproof industrial panel design

Sector 02

Medical Devices

In medical equipment such as diagnostic instruments and handheld monitoring devices, overmolded silicone keypads provide a sealed interface that is easy to clean and resistant to chemical disinfectants. The integrated structure reduces gaps where contaminants may accumulate, supporting hygiene requirements in clinical environments.
Hygienic Surface Design
Chemical Resistance

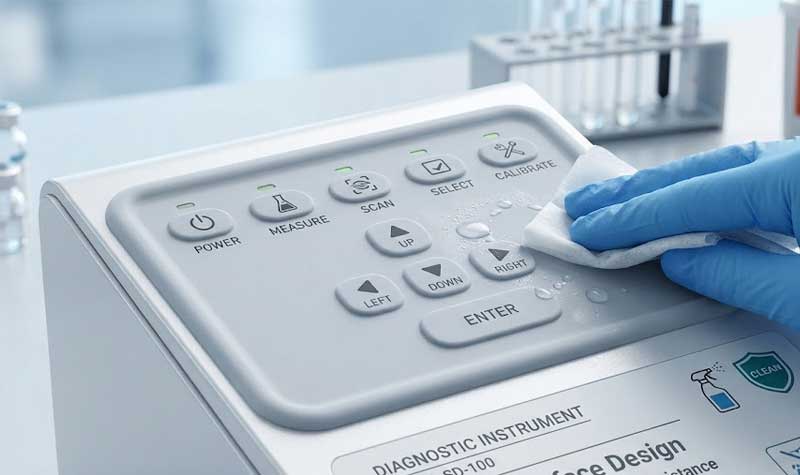

a hand in a blue medical glove wiping down a seamless overmolded silicone keypad on a medical diagnostic instrument with a disinfectant cloth in a clinical laboratory setting

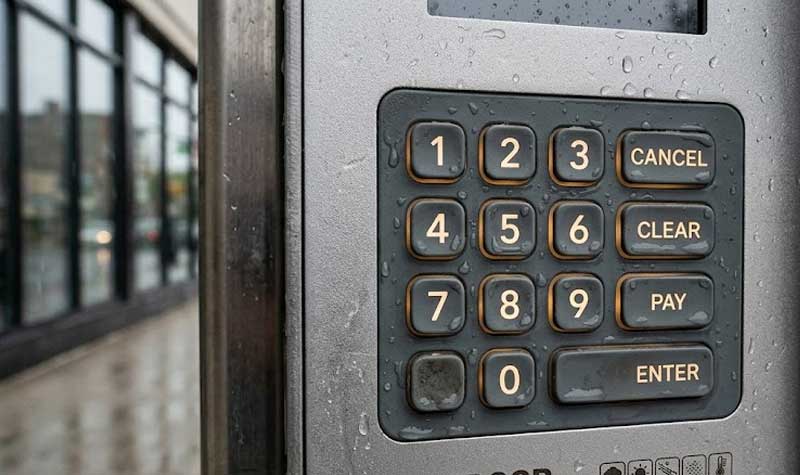

outdoor payment terminal keypad featuring overmolded silicone keypads with illuminated numbers and control buttons set against a blurred rainy street scene

Sector 03

Outdoor Electronics

For outdoor control systems, payment terminals, and communication devices, overmolded silicone keypads offer stable performance under rain, dust, and temperature changes. The bonded structure prevents water ingress at the interface between keypad and housing, improving long-term field reliability.
Request A Quote

Sector 04

Transportation & Marine Systems

Used in marine dashboards, vehicle control panels, and onboard instrumentation, overmolded silicone keypads provide strong resistance to vibration, salt spray, and humidity. The molded integration helps maintain consistent tactile feedback even in long-term mobile or offshore environments.
Salt Spray Resistance
Shock Stability

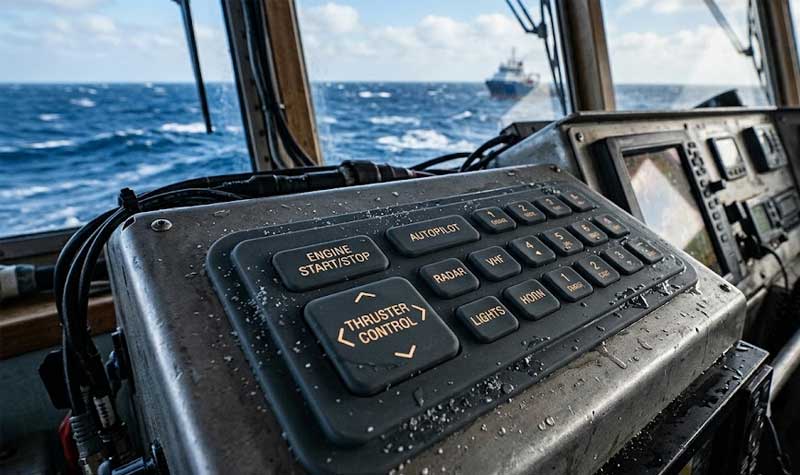

weathered marine control console with a prominent overmolded silicone keypad sits in a ships bridge overlooking the open ocean

Technical Specifications

Property (Attribute)Standard Industrial Overmolding ValueEngineering Significance / Advantage
Manufacturing ProcessMulti-Shot Injection / Direct Compression OvermoldingThermally or chemically bonds silicone to rigid plastic/metal sub-frames.
Substrate CompatibilityPolycarbonate (PC), ABS, PBT, Polyamide (Nylon), Al/SteelRigid skeleton provides structural mounting ears and impact resistance.
Bonding StrengthCohesive Failure of Silicone (Peel test)The chemical bond is stronger than the rubber itself; layers cannot delaminate.
Ingress ProtectionIP67 – IP68 / NEMA 4X & 6P RatedEliminates seams between plastic and rubber, blocking high-pressure water jets.
Dimensional Tolerance± 0.05mm to ± 0.10mm (On bonded interfaces)Tighter tolerances than standalone HCR; ensures drop-in fit for outer enclosures.

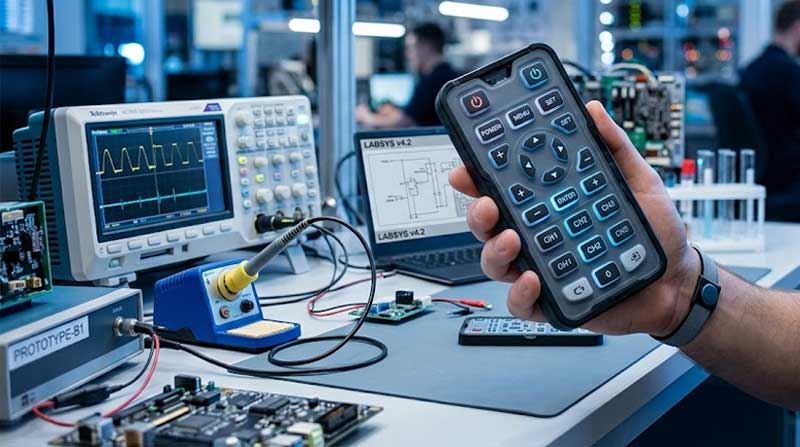

An engineer holds an overmolded silicone keypad prototype inside a high tech electronics laboratory with an oscilloscope and circuit boards in the background

“All our keypads are tested to meet rigorous international quality standards including ISO and ASTM requirements.”

Customization

  • Precision Mold-to-Frame Engineering
  • Custom Silicone Hardness
  • PCB & Housing Integration Matching
  • Surface Finish & Functional Coating Options

“We provide full OEM/ODM customization for overmolded silicone keypads to match different industrial enclosure designs, electrical requirements, and user interface standards. From substrate selection to silicone properties and surface finishing, every parameter can be adjusted to meet application-specific needs and mass production consistency.”

Consult Our Engineers

Overmolded Silicone Keypad Design Options

Industrial Numeric Overmolded Silicone Keypad

Compact 12-key overmolded silicone keypad with integrated plastic frame for stable PCB alignment. Designed for consistent actuation force and reduced key wobble in high-volume OEM production.
GET A QUOTE

Alphanumeric Function Overmolded Silicone Keypad with Mounting Tabs

Overmolded silicone keypad featuring numeric and letter legends with side mounting ears. Supports stable enclosure integration and precise key registration for custom industrial input systems.
GET A QUOTE

Rotary Navigation Overmolded Silicone Control Keypad

Overmolded silicone keypad with directional dome control and multi-color function caps. Combines tactile switching and navigation input in a single molded silicone interface structure.
GET A QUOTE

Multi-Color Custom Overmolded Silicone Keypad

Custom overmolded silicone keypad with multi-color key caps for functional grouping. Supports clear key identification and stable silicone bonding for long-cycle repetitive input use.
GET A QUOTE

Soft-Touch Rounded Overmolded Silicone Keypad

Overmolded silicone keypad with large rounded key geometry and uniform dome structure. Provides consistent actuation force control for smooth and stable silicone keypad input behavior.
GET A QUOTE

Waterproof Overmolded Silicone Keypad with Integrated Control Cluster

Sealed overmolded silicone keypad featuring directional arrows and central power control layout. Designed for improved sealing performance and stable key response in demanding operating environments.
GET A QUOTE

Overmolded Silicone Keypad Manufacturing Process

SKF Silicone kaypad factory 21

STEP 1: Molding

High-consistency rubber compression for base geometry.

Epoxy Doming

STEP 2:Etching

Laser removal of opaque spray for legend clarity.

SKF Silicone kaypad factory 5 1

STEP 3:Inspection

Optical check for uniformity and icons.

Spray Coating

STEP 4:Coating

PU or UV protective layers for abrasion resistance.

SKF Silicone Control

STEP 5:Quality Control

Final functional audit and ISO standard approval.

Frequently Asked Questions

An overmolded silicone keypad is formed by molding silicone directly onto a plastic or metal base, creating a single integrated keypad structure for stable assembly and long-term use.
Typically liquid silicone rubber (LSR) or solid silicone is used, combined with PC, ABS, or metal frames depending on design and application requirements.
Yes, OEM/ODM customization is available, including layout design, silicone hardness (Shore A), color matching, and substrate structure integration.
They can support high-level sealing performance when properly designed with enclosure, making them suitable for waterproof silicone keypad applications.
They are commonly used in industrial control panels, medical devices, outdoor electronics, transportation systems, and smart terminals.
Overmolding reduces assembly parts, improves structural stability, and ensures better alignment between keypad and housing.
