EMI Shielding Silicone Keypads

Q: What is an EMI shielding silicone keypad?

An EMI shielding silicone keypad is a silicone-based interface with conductive shielding layers that reduce electromagnetic interference and ensure stable signal performance in electronic devices.

Q: How does EMI shielding work in silicone keypads?

EMI shielding is achieved through conductive coatings or embedded conductive materials that block or absorb electromagnetic noise, improving device reliability.

Q: Can shielding effectiveness be customized?

Yes, shielding effectiveness (SE) can be adjusted by selecting different conductive materials, coating thickness, and grounding structures based on application requirements.

Q: Are EMI shielding silicone keypads suitable for harsh environments?

Yes, they are designed to resist temperature changes, humidity, dust, and chemical exposure while maintaining stable shielding performance.

Q: Can EMI shielding be combined with backlighting or waterproof design?

Yes, EMI shielding can be integrated with backlighting, waterproof sealing, and complex keypad structures without affecting performance.

This EMI Shielding Silicone Keypads product collection brings together multiple customizable conductive silicone keypad solutions designed for EMI/EMC-sensitive electronic systems. Each keypad option is engineered with conductive carbon pills or shielding structures to support stable signal transmission, reduce electromagnetic interference, and improve long-term contact reliability in industrial-grade control interfaces. Ideal for OEM/ODM projects requiring consistent performance under complex electrical environments.

Conductive Contact Design

EMI Noise Reduction Structure

OEM Custom Layout Support

Stable Long-Cycle Performance

What Are EMI Shielding Silicone Keypads?

EMI Shielding Silicone Keypads are silicone rubber-based input devices that integrate conductive materials or shielding structures to reduce electromagnetic interference (EMI) during operation. They are typically constructed using silicone elastomer with conductive carbon pills, conductive silicone layers, or shielding coatings to ensure stable electrical contact and controlled signal transmission.

These keypads are designed to maintain consistent switching performance while minimizing signal disruption between the keypad and the PCB, supporting basic electromagnetic compatibility (EMC) requirements in electronic systems.

Key Features of EMI Shielding Silicone Keypads

Conductive Carbon Contact

Uses conductive carbon pill or conductive silicone contact structure to ensure stable switching and low contact resistance in EMI shielding silicone rubber keypads.

EMI Noise Suppression Design

Integrated shielding structure reduces electromagnetic interference (EMI), improving signal stability in sensitive electronic keypad input systems.

Stable Signal Transmission

Optimized conductive path between keypad and PCB ensures consistent signal response and reduces mis-triggering in long-cycle operation.

Custom Key Layout Support

Supports OEM/ODM silicone keypad customization including numeric, function, and mixed control layouts for complex HMI designs.

Durable Silicone Elastomer

High-rebound silicone material maintains tactile performance and structural stability under repeated pressing and industrial use conditions.

EMC-Compatible Structure

Designed for improved electromagnetic compatibility (EMC), helping electronic devices meet system-level interference control requirements.

Versatile Solutions for Demanding Sectors

Sector 01

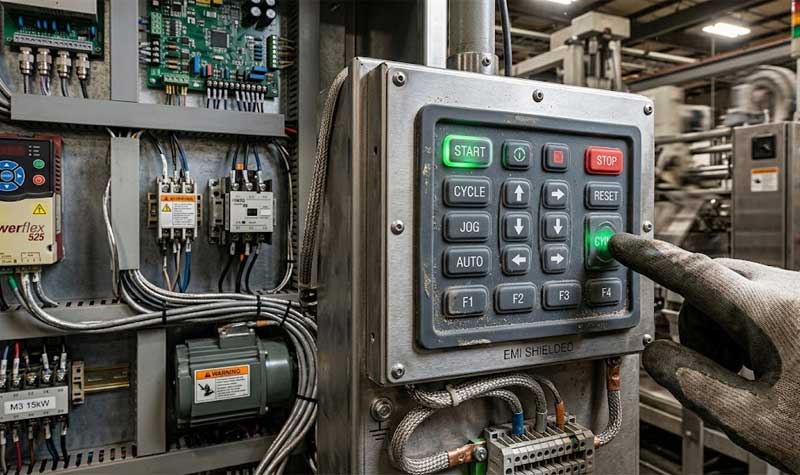

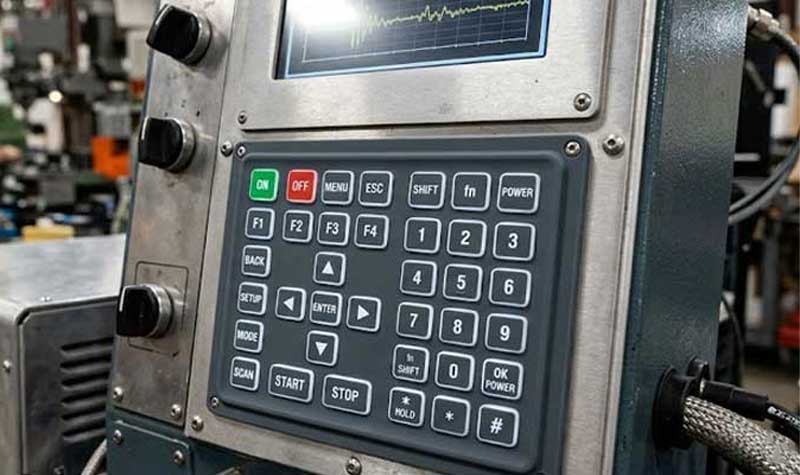

Industrial Control Systems

EMI Shielding Silicone Keypads are widely used in industrial control panels where stable signal input is required under high electrical noise environments. The conductive carbon contact structure helps reduce EMI interference from motors, inverters, and power systems, ensuring reliable keypad response during continuous operation. The silicone elastomer also supports long service life in dusty and high-vibration conditions common in factory automation equipment.

Stable Signal Input

Ensures consistent keypad response under electrical noise conditions.

High Vibration Resistance

Maintains performance in heavy-duty industrial operating environments.

Sector 02

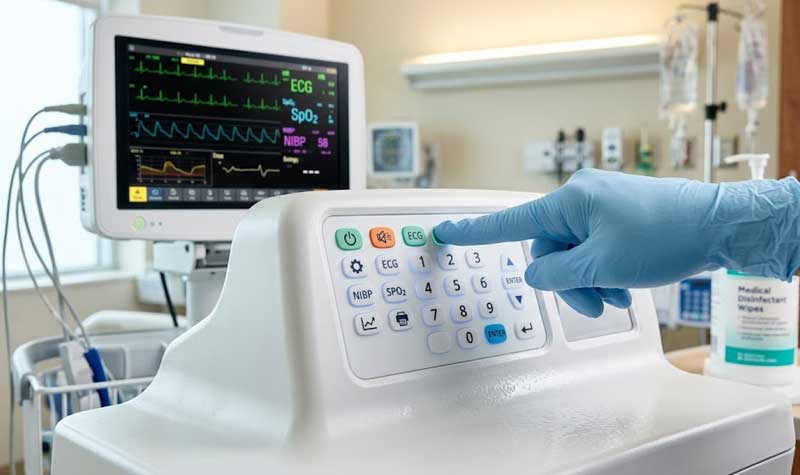

Medical Equipment Interfaces

In medical devices, EMI shielding silicone rubber keypads help maintain accurate input performance in sensitive diagnostic and monitoring systems. The EMI/EMC design reduces signal distortion caused by nearby electronic modules, ensuring stable user interaction. The sealed silicone structure also supports repeated cleaning cycles without affecting conductive performance or tactile feedback.

EMC Stable Performance

Sealed Cleanable Surface

Sector 03

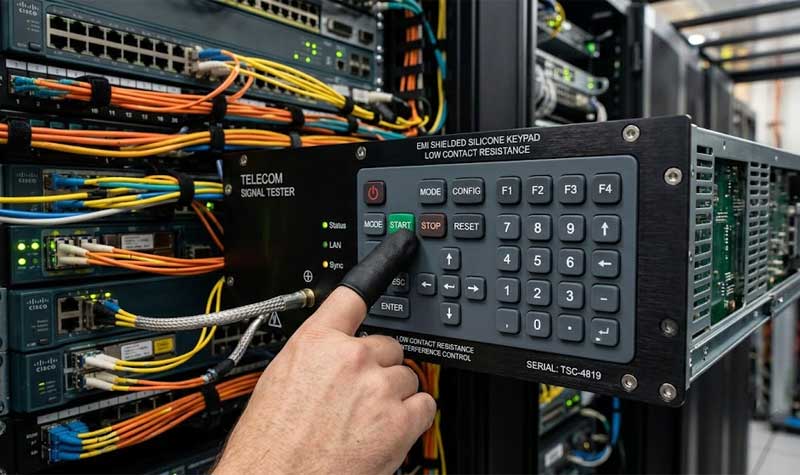

Telecommunication Devices

For telecom equipment such as control terminals and signal testing devices, EMI shielding silicone keypads provide stable electrical switching and reduce cross-signal interference. Conductive silicone contacts ensure low resistance and accurate signal transmission, which is critical for high-frequency communication systems and diagnostic instruments requiring precise input control.

Sector 04

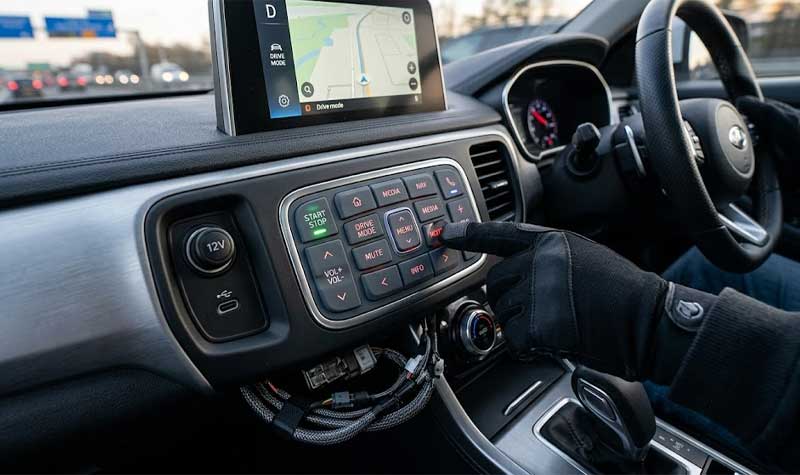

Automotive Electronics

EMI shielding silicone rubber keypads are used in automotive control systems such as dashboards, diagnostic tools, and in-vehicle control panels. They help reduce electromagnetic noise generated by engine systems and electronic modules, ensuring stable keypad operation. The durable silicone structure withstands temperature variation, vibration, and long-term mechanical stress.

Automotive EMI Stability

Temperature Resistant Design

Technical Specifications

Property (Attribute)	Standard Industrial Value	Engineering Significance / Compliance
Base Material	Metal-Filled HCR Silicone / Platinum-Cured Matrix	Formulated with conductive fillers to establish a continuous electrical shield.
Conductive Filler Type	Nickel-Graphite (Standard) / Silver-Aluminum	Balances cost-effectiveness with high shielding attenuation performance.
Shielding Effectiveness	60 dB to > 90 dB (100 MHz to 10 GHz)	Meets strict international industrial and commercial emission regulations.
Volume Resistivity	< 0.1 Ohm-cm to 0.005 Ohm-cm	Extremely low electrical resistance ensures an efficient path to ground.
ESD Protection	Withstands up to 15 kV to 25 kV Air Discharge	Absorbs high-voltage static shocks from operators, protecting internal logic circuits.
Contact Resistance	< 1 Ohm to 5 Ohms (At PCB Interface)	Provides immediate, low-impedance circuit closure on copper/gold PCB traces.

“All our keypads are tested to meet rigorous international quality standards including ISO and ASTM requirements.”

Customization

“We provide full customization for EMI shielding silicone keypads, designed to ensure stable electromagnetic interference protection, reliable conductivity, and consistent performance in demanding electronic environments. Each solution is engineered around shielding effectiveness, structural design, and interface integration to meet precise electrical and mechanical requirements across industrial, medical, communication, and control applications.”

EMI Shielding Silicone Keypad Design Options

EMI Shielding Numeric Silicone Keypad

Compact 12-key EMI shielding silicone rubber keypad with conductive carbon pill structure for stable signal contact and reduced EMI noise. Designed for high-reliability input systems requiring consistent actuation force and low contact resistance in long-cycle operation.

GET A QUOTE

EMI Shielded Industrial Function Silicone Keypad

Multi-function EMI shielding silicone keypad with integrated numeric and control keys using conductive silicone technology. Ensures improved EMC performance and stable signal transmission for complex input interfaces with frequent switching operations and signal interference risks.

GET A QUOTE

EMI Shielding Silicone Rubber Keypad with Arrow Control Keys

Custom EMI shielding silicone rubber keypad combining numeric and directional control keys with conductive shielding layer design. Provides reliable tactile feedback while reducing electromagnetic interference in mixed-function control input systems.

GET A QUOTE

EMI Shielded Circular Remote Control Silicone Keypad

Circular EMI shielding silicone keypad featuring multi-directional navigation and central selection key. Built with conductive carbon contact points to maintain stable switching performance and minimize EMI interference in compact handheld control interfaces.

GET A QUOTE

EMI Shielding Silicone Keypad for Precision Instrument Controls

Ergonomic EMI shielding silicone rubber keypad designed for precision instrument input systems. Features segmented key structure and conductive silicone design to ensure accurate signal response, reduced debounce issues, and improved EMC stability under repeated operation cycles.

GET A QUOTE

EMI Shielded Compact Silicone Control Keypad

Small-form-factor EMI shielding silicone keypad with integrated power and function keys. Uses conductive contact technology to ensure reliable circuit switching, anti-interference performance, and long service life in space-constrained electronic control modules.

GET A QUOTE

EMI Shielding Silicone Keypad Manufacturing Process

Frequently Asked Questions

What is an EMI shielding silicone keypad?

An EMI shielding silicone keypad is a silicone-based interface with conductive shielding layers that reduce electromagnetic interference and ensure stable signal performance in electronic devices.

How does EMI shielding work in silicone keypads?

EMI shielding is achieved through conductive coatings or embedded conductive materials that block or absorb electromagnetic noise, improving device reliability.

Can shielding effectiveness be customized?

Yes, shielding effectiveness (SE) can be adjusted by selecting different conductive materials, coating thickness, and grounding structures based on application requirements.

Are EMI shielding silicone keypads suitable for harsh environments?

Yes, they are designed to resist temperature changes, humidity, dust, and chemical exposure while maintaining stable shielding performance.

Can EMI shielding be combined with backlighting or waterproof design?

Yes, EMI shielding can be integrated with backlighting, waterproof sealing, and complex keypad structures without affecting performance.
