Light Guide Silicone Keypad Manufacturer

Light guide silicone keypads are designed for electronic interfaces that require both reliable tactile input and controlled LED illumination. By combining silicone rubber key structures with integrated light guide features, these keypads provide uniform backlighting, clear legends, and durable operation for industrial, medical, automotive, and consumer electronic devices. We provide OEM and ODM light guide silicone keypad solutions with customized layouts, illumination structures, tactile performance, and surface designs.

Uniform Light Distribution

Custom Light Guide Structures

Clear Backlit Legends

OEM Silicone Keypad Manufacturing

Request a Quote
Light Guide Silicone Keypads on an industrial control device showcasing backlit legends and uniform LED illumination on a desk

What Are Light Guide Silicone Keypads?

A light guide silicone keypad is a silicone-based input component that uses integrated light-guiding structures to transfer LED illumination to key legends, symbols, or functional areas. It combines the tactile response and sealing advantages of silicone rubber keypads with optical design elements that improve visibility in low-light environments. Unlike standard backlit silicone keypads that rely only on external light sources, light guide silicone keypads use customized optical paths, light channels, or molded light guide features to control illumination efficiency. They are commonly developed for devices requiring compact structures, reliable switching performance, and consistent night-time visibility.

Key Features of Light Guide Silicone Keypads

Optimized Light Guide Structure

Integrated light guide designs improve LED light distribution by controlling the transmission path inside the silicone keypad structure. Proper geometry helps reduce dark areas, uneven brightness, and excessive light leakage between keys.

Laser-Etched Backlit Legends

Laser-etched characters create precise light-transmitting areas on key surfaces. The combination of laser marking and light-blocking layers improves icon definition and maintains clear visibility after repeated operation.

Stable Tactile Performance

The silicone dome structure is engineered to provide consistent actuation force and tactile feedback. Material hardness, dome geometry, and conductive contact design are adjusted according to the required user experience.

Sealed Silicone Construction

The one-piece silicone structure helps protect internal electronics from dust, moisture, and environmental contamination. It is suitable for control interfaces exposed to frequent handling or outdoor conditions.

Custom LED Integration

Light guide silicone keypads can be designed around different LED positions, PCB layouts, and illumination requirements. Single-color, dual-color, and multi-zone lighting designs can be integrated for different interface functions.

Flexible OEM Design Options

Key shape, spacing, symbols, colors, surface texture, and mounting features can be customized to match specific device housings and user interfaces.

Versatile Solutions for Demanding Sectors

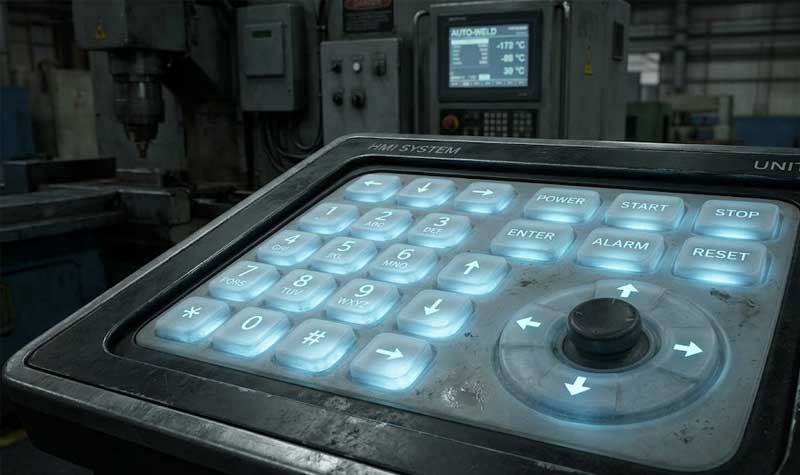

Light Guide Silicone Keypads on an industrial HMI control panel featuring backlit illuminated buttons inside a factory setting

Sector 01

Industrial Control Equipment

Light guide silicone keypads are widely used in industrial control panels, HMI systems, testing equipment, and automation devices. Operators often work in factories with limited lighting, making clear illuminated keys important for accurate operation. The sealed silicone surface helps resist dust, oil contamination, and frequent cleaning. Light guide structures improve visibility without requiring large internal lighting systems.

Sector 02

Medical and Laboratory Equipment

Medical and laboratory devices require input components that are easy to clean and reliable during repeated operation. Light guide silicone keypads provide sealed surfaces, clear symbols, and stable tactile feedback for professional equipment. Surface materials, printing methods, and silicone formulations can be selected according to cleaning requirements and target compliance standards.

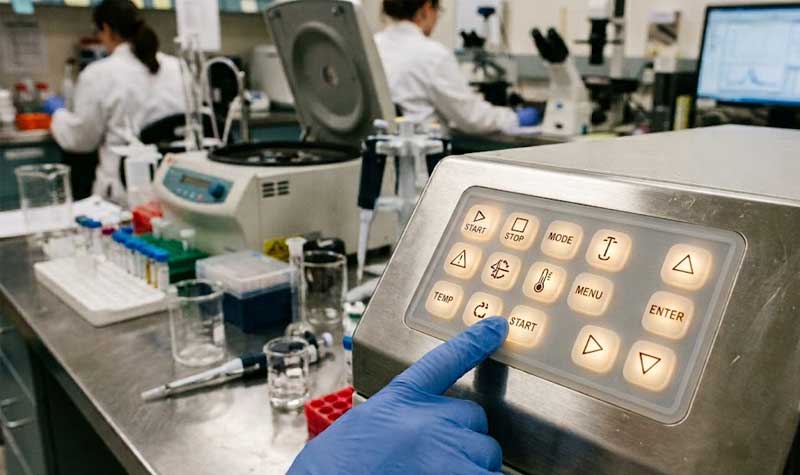

A gloved hand presses evenly illuminated Light Guide Silicone Keypads on a medical device in a laboratory setting

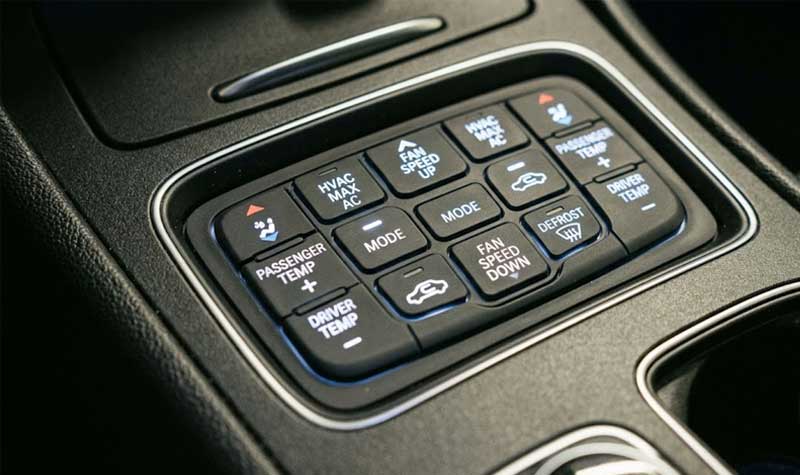

Evenly backlit Light Guide Silicone Keypads integrated into a modern car central console

Sector 03

Automotive Electronics

Automotive control interfaces require keypads that maintain performance under temperature changes, vibration, and frequent use. Light guide silicone keypads support illuminated vehicle controls with customized legends and durable tactile response. The optical structure must be carefully matched with LED location and housing design. Poor light guide geometry can create uneven brightness between adjacent keys.
Request A Quote

Sector 04

Consumer Electronics and Smart Devices

Compact electronic products often require illuminated buttons with attractive appearance and reliable operation. Light guide silicone keypads provide flexible design options for smart devices, handheld products, and control accessories. OEM designs can combine multiple colors, custom icons, and compact key layouts to create differentiated user interfaces.

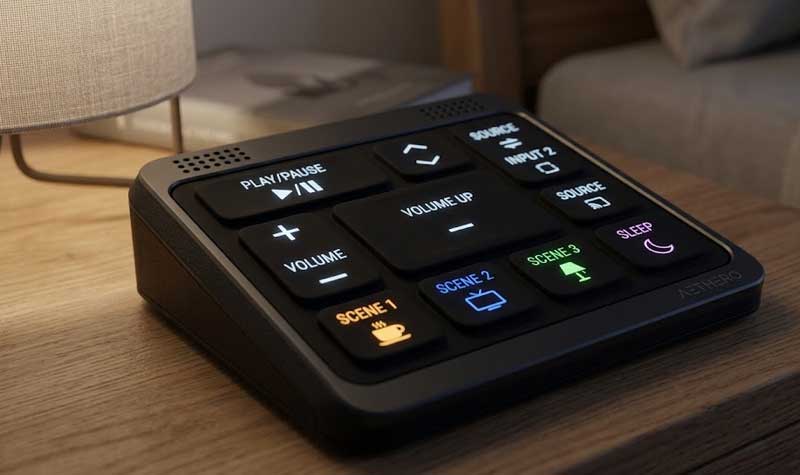

An AETHERO smart controller with multicolored backlit Light Guide Silicone Keypads sits on a wooden bedside table

Technical Specifications

SpecificationTypical Range / Options
MaterialSilicone Rubber, Conductive Silicone Rubber
HardnessShore A 30–80
Key Travel0.3–2.0 mm
Actuation Force50–500 gf
Contact TypeCarbon Pill, Conductive Ink, Metal Dome Integration
Backlight SourceLED, RGB LED
Light Guide StructureMolded Light Channel / Light Pipe Design
Legend MethodLaser Etching, Printing, Coating
Surface FinishMatte, Glossy, Textured
Operating Temperature-40°C to 200°C (material dependent)
Protection LevelIP54–IP67 achievable with design optimization
CustomizationLayout, Color, Logo, Light Pattern, PCB Interface

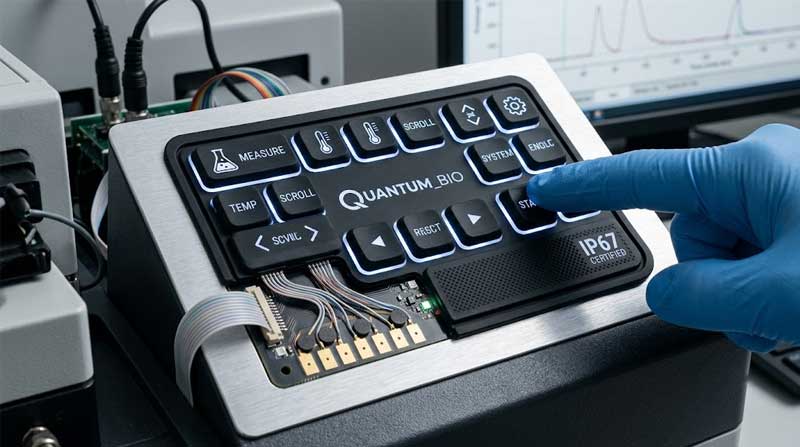

A gloved finger presses a backlit button on a custom medical device featuring Light Guide Silicone Keypads and internal circuitry

“All our keypads are tested to meet rigorous international quality standards including ISO and ASTM requirements.”

Customization

  • Light Guide Structure Design
  • Keypad Structure and Tactile Tuning
  • Backlit Legend and Surface Options
  • OEM Integration and Assembly Support

“We provide OEM and ODM customization for light guide silicone keypads, covering optical structures, keypad performance, surface design, and device integration. Each project is developed according to your PCB layout, LED position, housing dimensions, and user interface requirements. From prototype validation to mass production, our engineering team helps optimize light distribution, tactile response, and long-term product reliability for different electronic applications.”

Consult Our Engineers

Light Guide Silicone Keypad Design Options

Custom Light Guide Silicone Keypad with Dual FPC Connector

Custom light guide silicone keypad featuring integrated light channels, dual FPC connection, and laser-etched legends. Designed for uniform LED illumination, compact assembly, and reliable tactile input in OEM electronic devices.
GET A QUOTE

Illuminated Light Guide Silicone Keypad with Custom Key Layout

Illuminated silicone keypad with molded light guide structures and customized button arrangements. Supports clear backlit icons, optimized light transmission, and consistent tactile feedback for space-limited control interfaces.
GET A QUOTE

RGB Light Guide Silicone Keypad with Transparent Light Windows

RGB light guide silicone keypad designed with transparent illumination areas and multi-color LED compatibility. Provides controlled light distribution, high-contrast legends, and customizable key layouts for advanced user interfaces.
GET A QUOTE

Custom Backlit Light Guide Silicone Keypad with Printed Legends

Backlit light guide silicone keypad combining silicone rubber construction, printed symbols, and integrated illumination paths. Offers durable legends, stable key response, and flexible customization for OEM projects.
GET A QUOTE

Tactile Light Guide Silicone Keypad with Raised Buttons

Tactile light guide silicone keypad with raised keycaps, internal light guides, and enhanced button feedback. Engineered for accurate pressing, uniform backlighting, and long-cycle operation with custom silicone molding.
GET A QUOTE

Compact Light Guide Silicone Keypad with Flexible Circuit Connection

Compact illuminated silicone keypad featuring flexible circuit integration, custom light guide design, and precision molded keys. Provides reliable electrical connection, efficient LED lighting, and space-saving OEM keypad solutions.
GET A QUOTE

Backlit Silicone Keypad Manufacturing Process

SKF Silicone kaypad factory 21

STEP 1: Molding

High-consistency rubber compression for base geometry.

Epoxy Doming

STEP 2:Etching

Laser removal of opaque spray for legend clarity.

SKF Silicone kaypad factory 5 1

STEP 3:Inspection

Optical check for uniformity and icons.

Spray Coating

STEP 4:Coating

PU or UV protective layers for abrasion resistance.

SKF Silicone Control

STEP 5:Quality Control

Final functional audit and ISO standard approval.

Frequently Asked Questions

MOQ depends on product structure, tooling requirements, and production volume. For new projects, prototype quantities can be discussed before mass production planning.
They use molded optical structures to guide LED light toward specific areas, improving illumination efficiency and reducing uneven brightness compared with simple LED placement.
Yes. RGB LED solutions can be integrated with customized light guide structures for multi-color indicators, functional zones, and visual interface control.
Yes. Key dimensions, layouts, symbols, colors, surface finishes, and illumination patterns can be customized according to PCB and housing requirements.
Most designs use silicone rubber with optical and conductive requirements considered during material selection. Material choice depends on temperature range, durability, tactile requirements, and application environment.
