LED Silicone Keypads Manufacturer

SKF provides custom LED silicone keypads engineered with integrated LED components for applications requiring clear status indication, functional lighting, and reliable tactile input. These silicone keypad solutions combine flexible silicone rubber structures with embedded LED technology, conductive contacts, and customized key designs to support OEM electronic devices, control panels, and industrial interfaces. Our LED silicone keypads are developed for projects that need more than mechanical input. Engineers optimize LED positioning, light transmission paths, silicone thickness, and conductive pill alignment to achieve stable illumination and consistent button performance. Custom OEM and ODM solutions are available for different layouts, colors, electrical configurations, and housing requirements.

Integrated LED Components

Reliable Tactile Performance

Custom Light Distribution Design

OEM Silicone Keypad Manufacturing

Request a Quote
A hand holds a compact smart remote featuring a custom LED silicone keypad with colorful illuminated soft touch buttons

What Are LED Silicone Keypads?

LED silicone keypads are silicone-based input components that integrate LED light sources into the keypad structure to provide visual indication, function confirmation, or localized illumination. They combine flexible silicone rubber, conductive contacts, and embedded LED components to create durable buttons with both tactile response and electronic feedback functions. Unlike backlit silicone keypads, which focus on illuminating legends and symbols for visibility in dark environments, LED silicone keypads are mainly designed around the integration and control of LED indicators within individual buttons or functional areas. The LED can indicate operating status, signal activation, mode selection, or equipment conditions. SKF engineers consider LED placement, silicone wall thickness, light blocking design, and PCB alignment during development. Incorrect LED positioning can create uneven light output or mechanical stress around the button structure. Early DFM reviews help prevent these issues before tooling begins and improve production consistency during mass manufacturing.

Key Features of LED Silicone Keypads

Integrated LED Light Source Design

LED silicone keypads support direct integration of LED components within the silicone button structure or assembly design. The LED position is optimized according to PCB layout, button geometry, and required viewing angle. This structure allows clear status indication for power buttons, function controls, warning signals, and equipment interfaces without requiring a separate indicator panel.

Stable Tactile Feedback

The silicone rubber dome structure provides consistent actuation force, snap response, and key travel performance. Material hardness, web geometry, and conductive pill position are adjusted according to the required user experience. During production development, SKF engineers evaluate dome collapse behavior and contact reliability because LED integration can affect available internal space and mechanical response.

Custom Light Distribution Control

LED silicone keypads can be designed with optical structures that improve light visibility around specific button areas. Silicone thickness, internal cavities, and light-blocking layers can be adjusted to control unwanted light leakage. This approach is different from full backlight designs that require complete legend illumination across multiple keys.

Durable Silicone Construction

High-quality silicone materials provide resistance against moisture, temperature changes, and repeated operation. The sealed rubber structure helps protect internal contacts from dust, liquid exposure, and environmental contamination. Material selection considers operating temperature, compression set, and long-term tactile stability to maintain reliable performance throughout the product lifecycle.

Flexible OEM Configuration

LED silicone keypads can be customized with different key layouts, LED colors, silicone hardness, surface finishes, and electrical connection methods. Available options include Single LED indicator buttons, multiple LED positions, conductive carbon pill contacts, PCB or FPC integration, printed symbols and markings, andcustom silicone housing structures

Long Service Life Performance

The combination of silicone elasticity and optimized dome design supports repeated actuation cycles in demanding applications. The service life depends on factors such as actuation force, silicone formulation, conductive contact design, and operating environment. Proper mechanical design is essential because excessive snap ratio or thin diaphragm structures may increase fatigue stress around the silicone web.

Versatile Solutions for Demanding Sectors

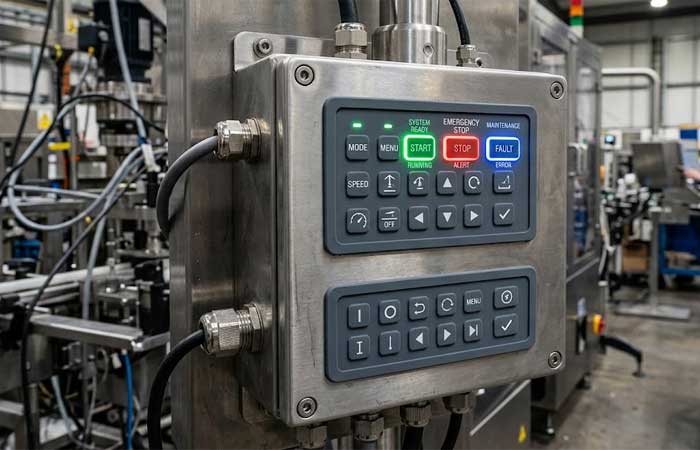

An industrial control panel on heavy machinery featuring custom LED silicone keypads with glowing status lights in a clean factory

Sector 01

Industrial Control Systems

LED silicone keypads are widely used in industrial control equipment where operators need clear visual feedback and reliable mechanical input. Integrated LED indicators help display machine status, operation modes, warnings, or selected functions, while the silicone structure provides protection against dust, moisture, and frequent operation. Industrial customers often require stable performance under continuous use. SKF engineers evaluate LED location, button structure, and PCB alignment during design reviews because small dimensional changes can affect both illumination visibility and tactile response.

Status Indication for Machine Interfaces

LED buttons provide clear operating feedback for control panels, automation equipment, and industrial instruments.

Sealed Silicone Protection

Molded silicone structures help protect internal electronic contacts from dust, oil, and liquid exposure.

Sector 02

Electronic Equipment Control Panels

Electronic devices often require compact input solutions that combine button operation with visual confirmation. LED silicone keypads integrate switching functions and indicator lighting into a single flexible component, reducing assembly complexity. They are suitable for control interfaces where users need to quickly identify active functions, power status, or operating conditions. Custom silicone hardness, LED color, and button layout allow manufacturers to match different product designs.
Compact Interface Integration
Custom Functional Lighting

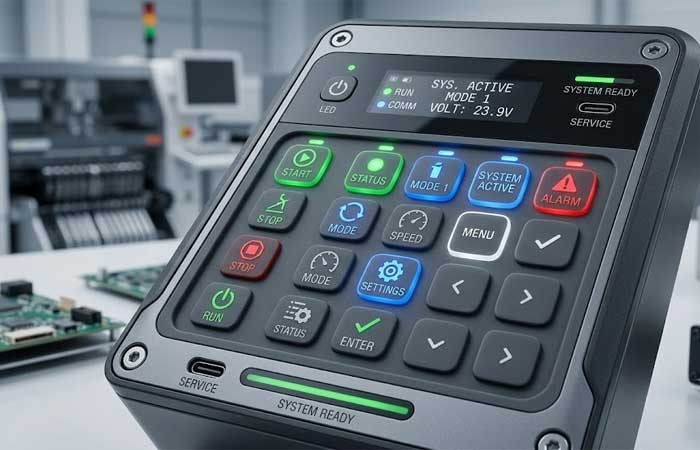

A sleek electronic control interface featuring customized LED silicone keypads with illuminated blue and green status buttons

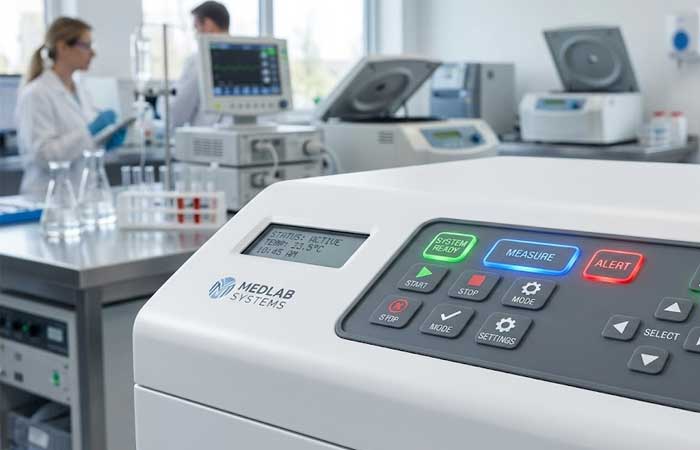

未标题 1.jpgA medical device featuring custom LED silicone keypads with glowing status indicators in a clean laboratory environment

Sector 03

Medical and Laboratory Equipment

Medical and laboratory devices require cleanable surfaces, reliable operation, and clear functional feedback. LED silicone keypads provide sealed input surfaces with integrated indicators for equipment status, mode selection, and operational alerts. Silicone materials can support frequent cleaning processes when the correct formulation and surface treatment are selected. Material compliance depends on the selected silicone compound, coating, printing materials, and target market requirements.
Request A Quote

Sector 04

Consumer Electronics and Smart Devices

Consumer electronics use LED silicone keypads for power controls, function buttons, and interactive interfaces that require immediate visual feedback. Compared with traditional separate buttons and indicator components, integrated LED silicone structures can simplify assembly and improve product appearance. OEM projects often require customized colors, surface textures, printed icons, and compact structures to match the final product design.
Integrated Button and Indicator Function
Flexible Product Design Options

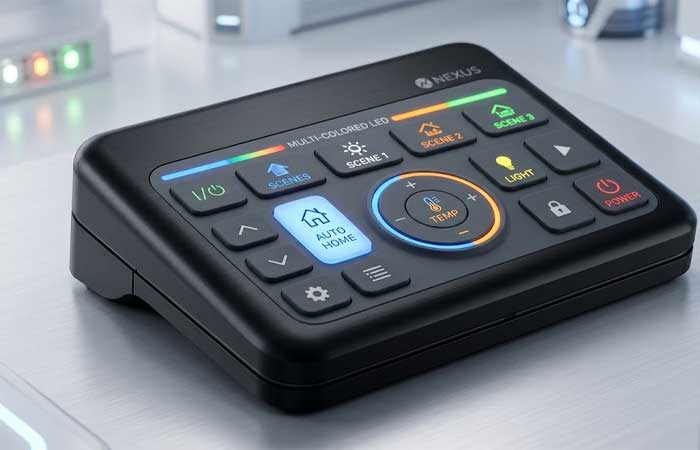

A smart electronic device featuring customized LED silicone keypads with colorful backlit buttons on a sleek table

Technical Specifications

ParameterSpecification Range
Silicone MaterialSilicone Rubber, LSR, HTV, HCR
HardnessShore A 30–80
Operating Temperature-40°C to 200°C (depending on material)
LED TypeSMD LED, Through-Hole LED, Custom LED Modules
LED ColorSingle Color, Dual Color, Multi Color Options
Conductive ContactCarbon Pill, Gold Plated Contact, Metal Dome Integration
Actuation Force50–500 gf (customized according to design)
Key Travel0.3–2.0 mm
Circuit IntegrationPCB, FPC, Membrane Circuit
Surface FinishMatte, Glossy, Texture, Coating Options
Printing OptionsScreen Printing, Laser Marking, Pad Printing
Protection LevelCustom Sealing Design for Dust and Moisture Resistance

Customization

  • Custom LED Integration Design
  • Tactile Performance Optimization
  • Structure and Appearance Customization
  • OEM Manufacturing Support
SKF provides OEM and ODM customization for LED silicone keypads, covering mechanical structure, LED integration, tactile performance, and visual design. Each project begins with a review of product requirements, PCB position, available installation space, and expected user experience. LED integration requires careful coordination between silicone molding and electronic assembly. During tooling development, engineers check LED clearance, silicone wall thickness, and light leakage risks because improper spacing can affect both button durability and illumination performance.
Consult Our Engineers

LED Silicone Keypad Design Options

Numeric LED Silicone Keypad with Function Indicators

Custom numeric LED silicone keypad featuring molded silicone buttons, printed numbers, and integrated LED status indicators. The compact keypad design supports reliable tactile feedback, conductive carbon pill contacts, and customized layouts for electronic control interfaces requiring clear button identification.
GET A QUOTE

Waterproof LED Silicone Keypad with Illuminated Buttons

Waterproof LED silicone keypad with sealed silicone construction, illuminated function buttons, and integrated LED indicators. Designed with durable rubber keys, customized symbols, and optimized button structure to provide reliable switching performance and clear visual feedback.
GET A QUOTE

Circular LED Silicone Keypad with Multi-Color Indicators

Round LED silicone keypad featuring a central control button, radial key arrangement, and multi-color LED indication areas. The custom silicone keypad design combines flexible rubber construction, tactile response, and precise light distribution for advanced control interfaces.
GET A QUOTE

Custom Ergonomic LED Silicone Keypad with Backlit Indicators

Ergonomic LED silicone keypad with a customized curved shape, multiple function keys, and integrated LED feedback areas. The molded silicone structure provides comfortable operation, consistent actuation force, and flexible customization for complex keypad assemblies.
GET A QUOTE

Industrial LED Silicone Keypad with Multiple Function Keys

Industrial LED silicone keypad with a large button matrix, integrated indicator lights, and durable silicone rubber construction. This custom keypad supports complex layouts, printed legends, conductive contacts, and long-cycle operation with stable tactile performance.
GET A QUOTE

Compact LED Silicone Keypad with Navigation Controls

Compact LED silicone keypad featuring directional buttons, numeric keys, and illuminated function indicators. The low-profile silicone keypad design offers flexible button arrangement, reliable electrical contact, and customized LED integration for space-limited electronic devices.
GET A QUOTE

LED Silicone Keypad Manufacturing Process

SKF Silicone kaypad factory 21

STEP 1: Molding

High-consistency rubber compression for base geometry.

Epoxy Doming

STEP 2:Etching

Laser removal of opaque spray for legend clarity.

SKF Silicone kaypad factory 5 1

STEP 3:Inspection

Optical check for uniformity and icons.

Spray Coating

STEP 4:Coating

PU or UV protective layers for abrasion resistance.

SKF Silicone Control

STEP 5:Quality Control

Final functional audit and ISO standard approval.

Frequently Asked Questions

The MOQ depends on keypad size, tooling requirements, LED configuration, and production process. Prototype quantities can be discussed during development, while mass production orders are usually planned according to project volume and assembly requirements.
LED silicone keypads focus on integrating LED components for status indication, functional lighting, or localized illumination. Backlit silicone keypads are designed mainly for illuminating legends, symbols, or characters through light-transmitting structures such as laser-etched areas.
Yes. LED silicone keypads can use different LED colors according to function requirements. Single-color LEDs are commonly used for status indication, while multiple colors can be applied for different operation states.
Yes, waterproof designs can be developed by combining sealed silicone structures, proper housing integration, and suitable PCB protection methods. The actual protection level depends on the complete assembly design.
Light leakage is controlled through silicone thickness design, internal structures, LED positioning, and light-blocking methods. SKF engineers review these factors during DFM analysis because excessive light leakage often appears when LED placement and silicone geometry are not optimized together.
Yes, laser marking or laser-etched areas can be added when visible symbols or icons are required. However, the design purpose differs from backlit silicone keypads because LED versions usually prioritize indicator functions rather than full legend illumination.
