Precision Manufacturing

Hygienic Silicone Keypad

Hygienic silicone keypads are designed for applications that require clean surfaces, frequent cleaning, and reliable operation. Made from high-performance silicone rubber, these keypads provide a smooth, sealed, and easy-to-clean interface while maintaining excellent tactile feedback and long service life. As a custom silicone keypad manufacturer, we provide OEM solutions including silicone material selection, key structure design, surface finishing, printing, conductive contact integration, and backlighting options to meet different hygiene and durability requirements.

Easy-to-Clean Surface

Sealed Waterproof Design

Chemical Resistant Material

Custom Tactile Performance

Request a Quote
A medical worker in blue gloves uses a Hygienic Silicone Keypad on a workstation cart

What Are Hygienic Silicone Keypads?

A hygienic silicone keypad is a molded silicone rubber interface designed to minimize contamination risks and simplify cleaning processes. Unlike traditional mechanical buttons with gaps and exposed moving parts, silicone keypads can be manufactured with seamless surfaces, sealed structures, and protective coatings. The flexible silicone membrane provides a comfortable tactile response while protecting internal components from moisture, dust, cleaning agents, and repeated user contact. By adjusting silicone hardness, web structure, and conductive pill design, manufacturers can achieve different actuation forces and key feels for specific applications.

Key Features of Hygienic Silicone Keypads

Smooth and Easy-to-Clean Surface Design

Hygienic silicone keypads can be produced with smooth surfaces and reduced surface gaps to prevent dirt accumulation. The silicone rubber material supports regular wiping and cleaning procedures while maintaining appearance and mechanical performance.

Waterproof and Sealed Silicone Structure

The one-piece molded silicone construction creates an effective barrier against water, dust, and external contaminants. Engineers can optimize sealing ribs and surrounding structures during DFM review to improve protection between the keypad and housing.

Chemical and Cleaning Agent Resistance

Silicone rubber offers excellent resistance to many cleaning chemicals and disinfectants. Material selection and surface treatment can be customized according to exposure conditions, helping the keypad maintain durability during repeated cleaning cycles.

Reliable Tactile Feedback

Hygienic designs do not compromise user experience. The diaphragm geometry, silicone thickness, and web structure can be adjusted to achieve consistent actuation force, key travel, and tactile response.

Durable Performance Under Frequent Use

Silicone keypads are suitable for high-frequency operation. Proper material formulation and compression molding control help maintain elasticity and reduce performance changes after millions of presses.

Custom Surface Finishes and Visual Marking

Hygienic silicone keypads can be customized with laser etching, screen printing, protective coatings, and backlighting features. These options allow clear legends and symbols while maintaining surface durability.

Versatile Solutions for Demanding Sectors

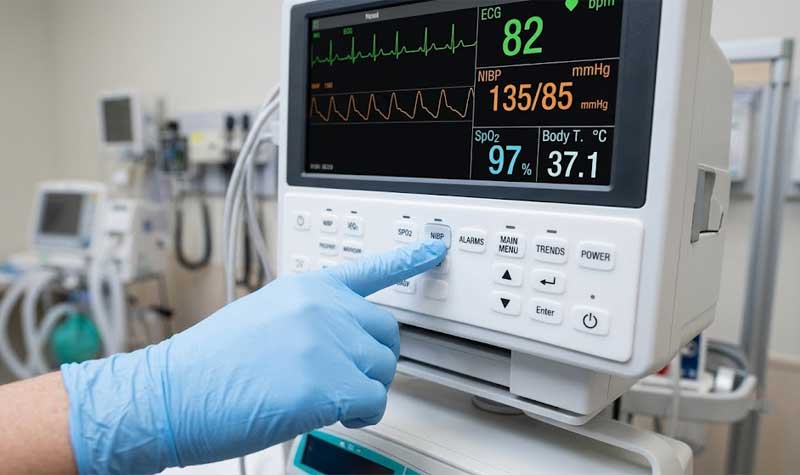

A healthcare worker operates a Hygienic Silicone Keypad integrated into a medical patient monitor in a clinical setting

Sector 01

Medical and Healthcare Equipment

Medical equipment requires control interfaces that can withstand frequent disinfection while maintaining precise operation. Hygienic silicone keypads are suitable for patient monitoring systems, diagnostic devices, laboratory analyzers, and medical control panels where operators need reliable input with minimal maintenance. The molded silicone structure can be designed with sealed edges and smooth surfaces to prevent liquid penetration and simplify cleaning. During design optimization, engineers evaluate silicone hardness, key travel, tactile force, and surface finishing to ensure comfortable operation while meeting strict hygiene requirements.

Sector 02

Food Processing and Beverage Equipment

Food and beverage equipment often operates in environments where control panels are exposed to moisture, cleaning chemicals, and repeated sanitation cycles. Hygienic silicone keypads provide a durable interface solution for commercial cooking equipment, beverage machines, food processing systems, and dispensing equipment. Silicone materials can be selected according to chemical exposure conditions, while surface textures and coatings can be customized to reduce residue buildup. Sealing structures around the keypad edges help protect internal electronics from water and cleaning solutions during daily maintenance.

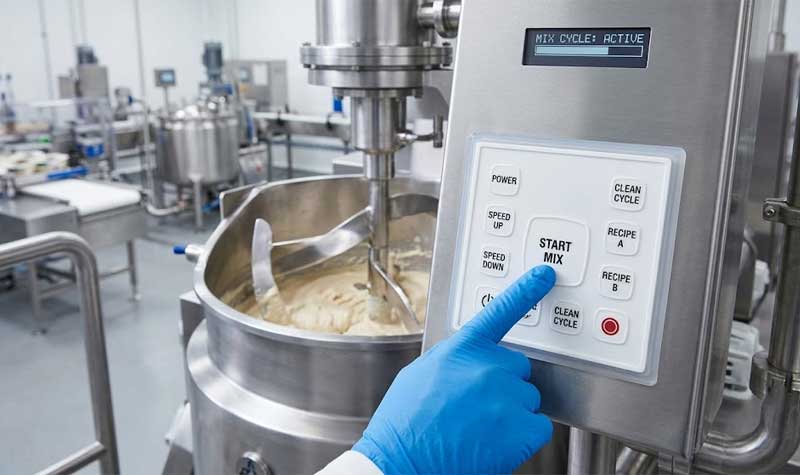

An operator uses a Hygienic Silicone Keypad on a stainless steel control panel in a food processing plant

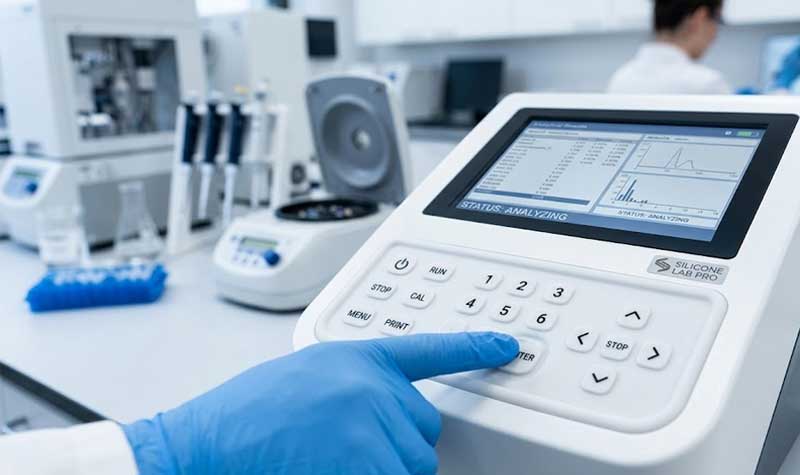

A gloved technician operates a Hygienic Silicone Keypad on an analytical instrument in a modern laboratory

Sector 03

Laboratory and Scientific Instruments

Laboratory instruments require input components that combine precision, chemical resistance, and long service life. Hygienic silicone keypads can be integrated into analytical instruments, testing equipment, and research devices where operators frequently clean surfaces or work with chemical substances.

Custom designs allow manufacturers to adjust tactile response for different operating requirements. Conductive carbon pills, printed legends, and protective surface treatments can also be integrated to achieve stable electrical performance and long-term usability.

Request A Quote

Sector 02

Public Access and Self-Service Equipment

Self-service terminals and public equipment require interfaces that experience frequent user contact. Hygienic silicone keypads provide a robust alternative to exposed mechanical buttons by offering a sealed, easy-to-maintain surface. Applications include ticket machines, access control systems, payment terminals, and interactive kiosks. Custom printing, backlighting, and surface coatings allow clear user guidance while maintaining durability in high-traffic environments.

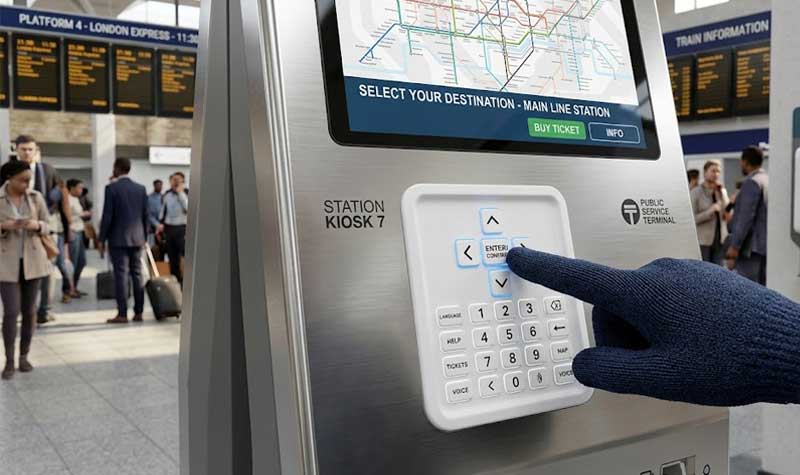

A commuter uses a backlit Hygienic Silicone Keypad on a self service ticket kiosk in a busy transit terminal

Technical Specifications

ParameterSpecification
MaterialSilicone Rubber / Liquid Silicone Rubber (LSR)
Hardness Range30-80 Shore A
Operating Temperature-60°C to 250°C
Manufacturing ProcessCompression Molding / LSR Injection Molding
Surface OptionsSmooth Finish, Matte Texture, Coating
Printing MethodsScreen Printing, Laser Etching, Pad Printing
Electrical ContactCarbon Pill, Metal Dome, PCB Contact
Waterproof ProtectionCustom Sealing Structure Available
CustomizationOEM / ODM Support

Customization

  • Custom Silicone Material and Surface Finish
  • Customized Keypad Structure and Tactile Feel
  • Custom Printing and Protective Coatings
  • Integrated Functional Features

“Hygienic silicone keypads can be customized according to hygiene requirements, mechanical specifications, and product design needs. We support OEM/ODM customization from silicone material selection and structural design to surface treatment and functional integration, helping customers develop easy-to-clean, durable, and reliable silicone keypad solutions for demanding environments.”

Consult Our Engineers

Hygienic Silicone Keypad Design Options

Custom Hygienic Silicone Keyboard with Full Layout

Full-size hygienic silicone keyboard featuring a sealed silicone structure, smooth easy-clean surface, and integrated key layout. Designed for OEM projects requiring waterproof protection, durable tactile performance, and customized printing or functional options.
GET A QUOTE

Waterproof Hygienic Silicone Keyboard with Custom Key Layout

Custom waterproof silicone keyboard with molded silicone keys, protective surface design, and reliable key feedback. Supports customized dimensions, legends, silicone hardness, and conductive contacts for durable human-machine interfaces.
GET A QUOTE

Multi-Color Hygienic Silicone Keypad with Printed Buttons

Multi-color hygienic silicone keypad with clear visual identification and molded silicone buttons. Features durable printing, sealed construction, and customizable tactile response for products requiring clean surfaces and long-term operation.
GET A QUOTE

Compact Hygienic Silicone Control Keypad with Custom Buttons

Compact hygienic silicone keypad designed with integrated function buttons, waterproof sealing, and ergonomic key arrangement. Supports custom colors, symbols, actuation force, and conductive carbon pill configurations for OEM control interfaces.
GET A QUOTE

Circular Hygienic Silicone Keypad with Navigation Controls

Custom circular silicone keypad featuring directional control buttons, smooth silicone surface, and reliable tactile feedback. Designed for applications requiring easy-clean construction, compact design, and customized mechanical integration.
GET A QUOTE

Industrial Hygienic Silicone Keypad with Raised Buttons

Industrial hygienic silicone keypad with raised tactile buttons, durable silicone rubber construction, and enhanced user feedback. Available with custom key shapes, printing, coatings, and sealing designs for demanding control applications.
GET A QUOTE

Hygienic Silicone Keypad Manufacturing Process

SKF Silicone kaypad factory 21

STEP 1: Molding

High-consistency rubber compression for base geometry.

Epoxy Doming

STEP 2:Etching

Laser removal of opaque spray for legend clarity.

SKF Silicone kaypad factory 5 1

STEP 3:Inspection

Optical check for uniformity and icons.

Spray Coating

STEP 4:Coating

PU or UV protective layers for abrasion resistance.

SKF Silicone Control

STEP 5:Quality Control

Final functional audit and ISO standard approval.

Frequently Asked Questions

A hygienic silicone keypad uses a sealed silicone structure with a smooth, easy-to-clean surface that helps reduce contamination buildup and simplifies maintenance.
Yes. Silicone materials can be selected for resistance to common cleaning agents and disinfectants. Surface treatment and material formulation can be adjusted according to specific requirements.
Yes. Silicone keypads can be designed with sealed structures to provide protection against moisture, dust, and liquid exposure.
Yes. Tactile force can be adjusted by modifying silicone hardness, diaphragm thickness, web geometry, and conductive contact design.
Yes. Custom backlighting designs are available with light guides, transparent silicone areas, laser etched legends, and LED integration.
